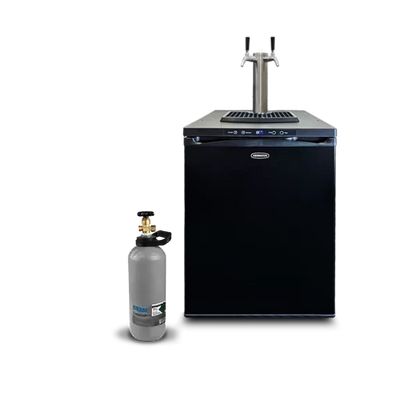

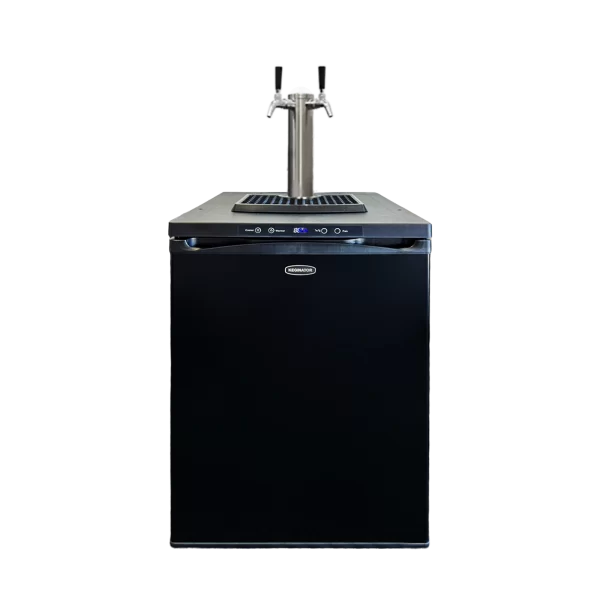

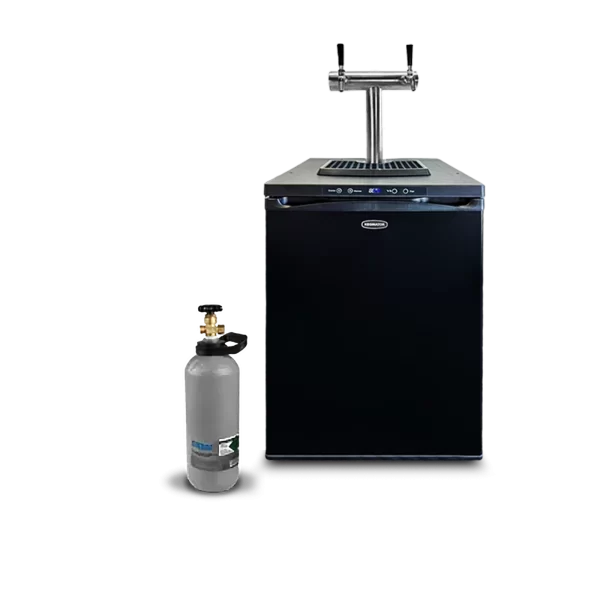

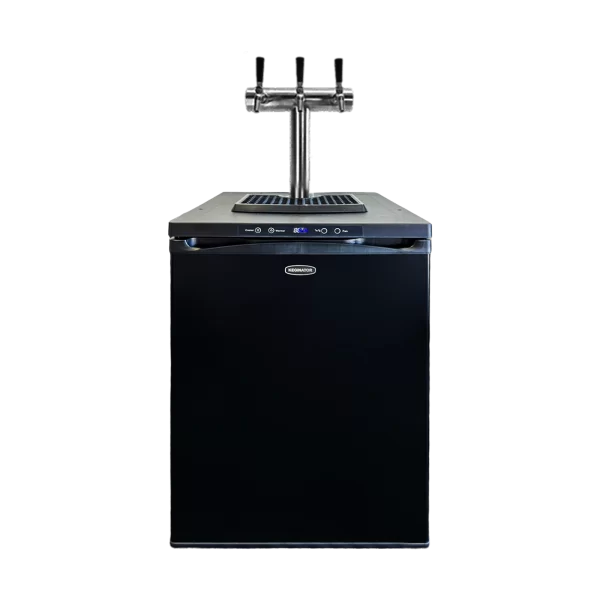

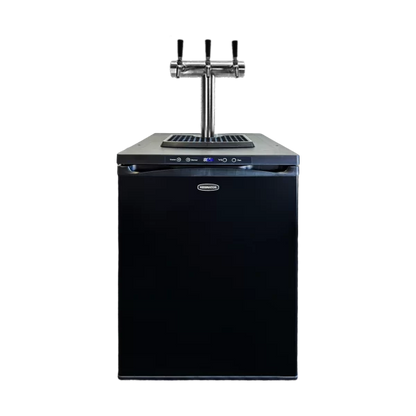

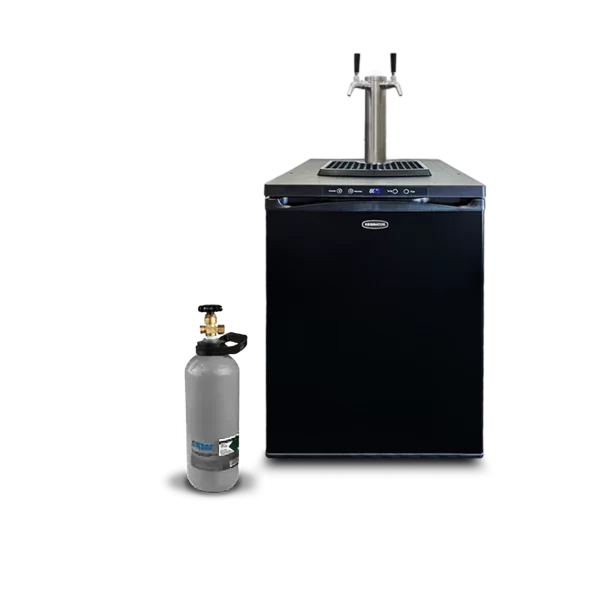

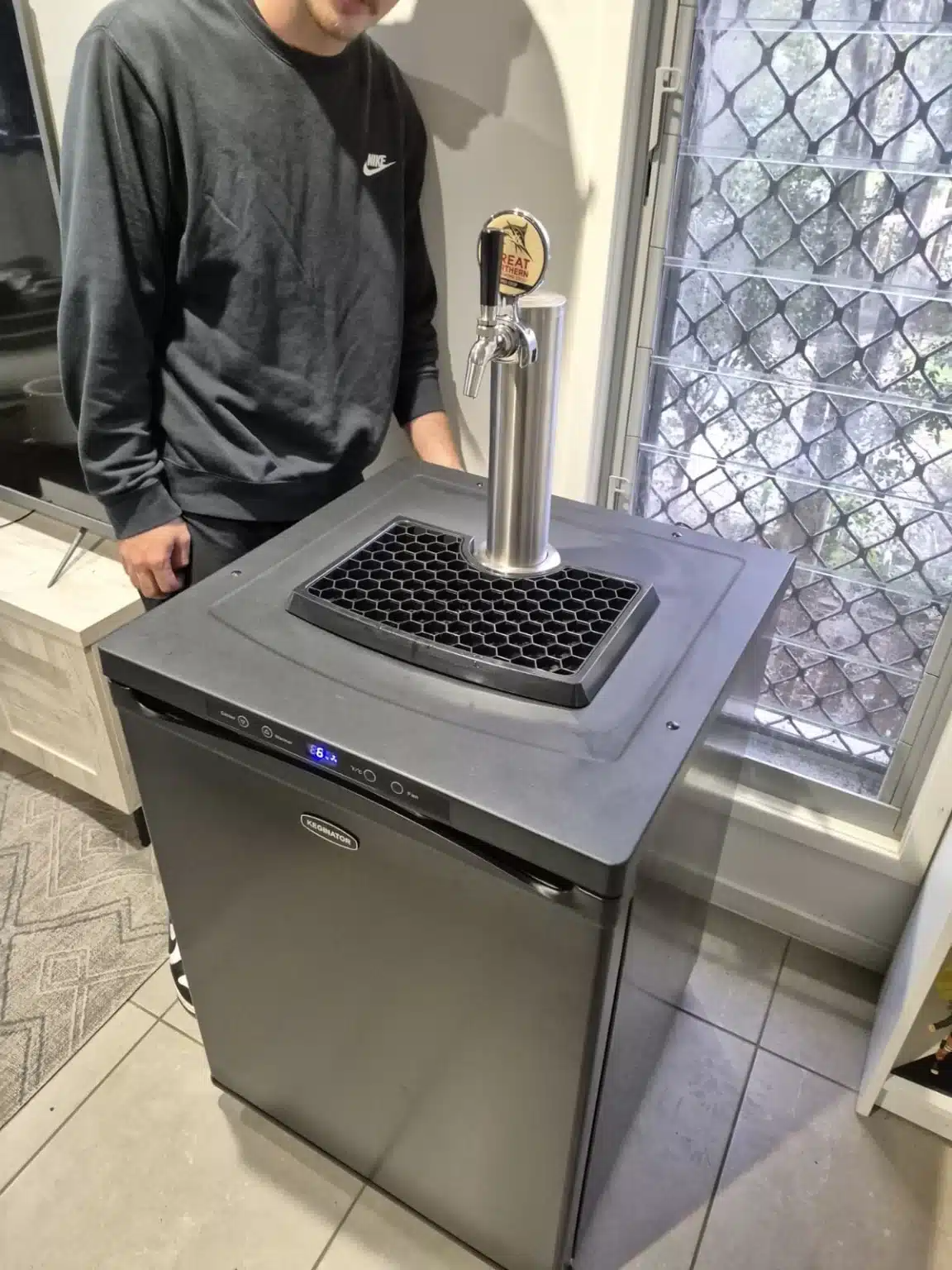

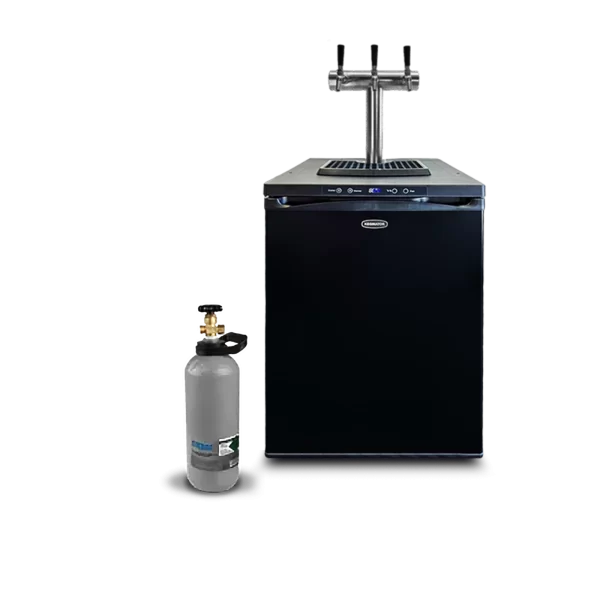

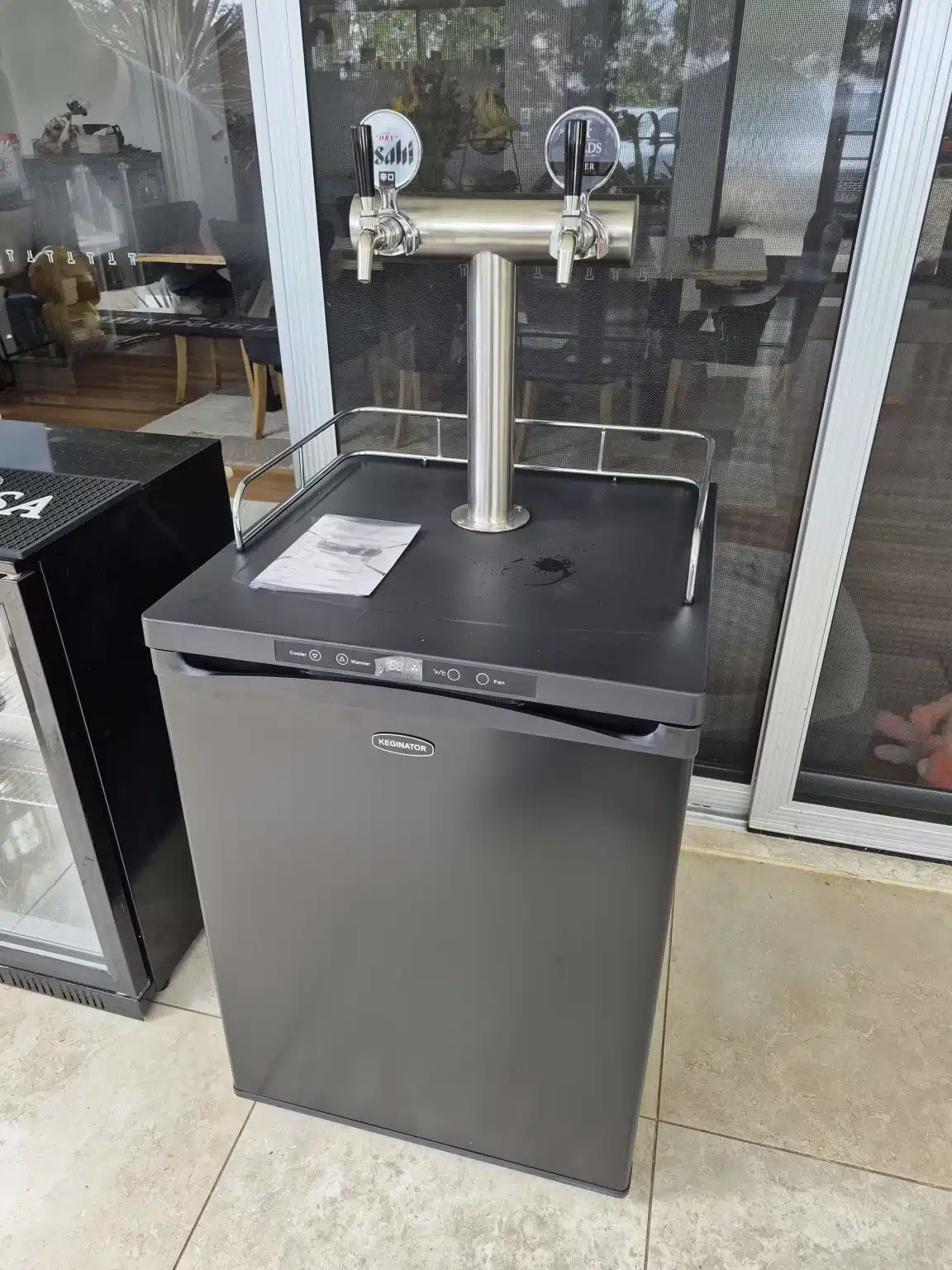

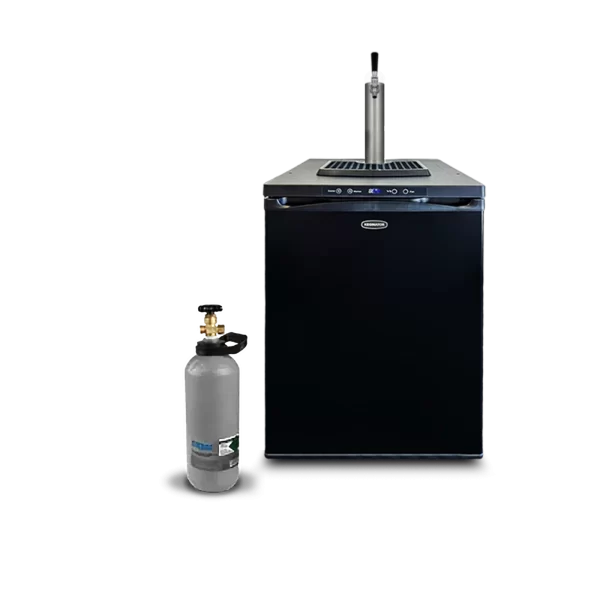

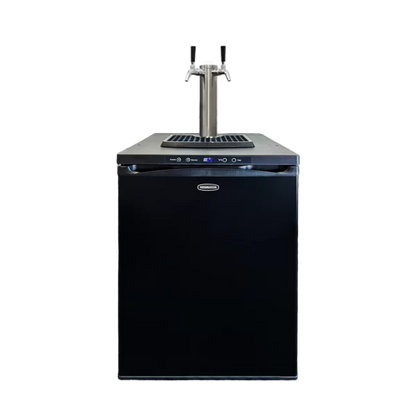

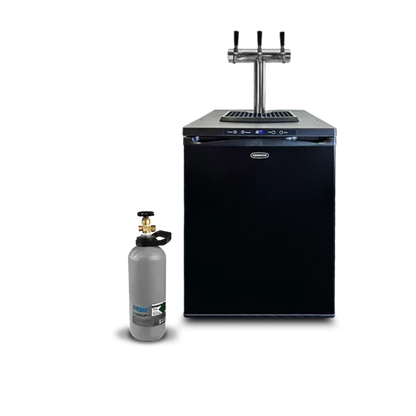

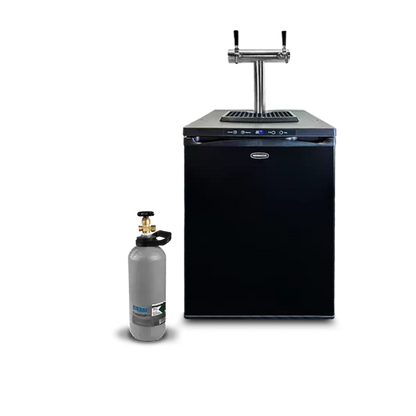

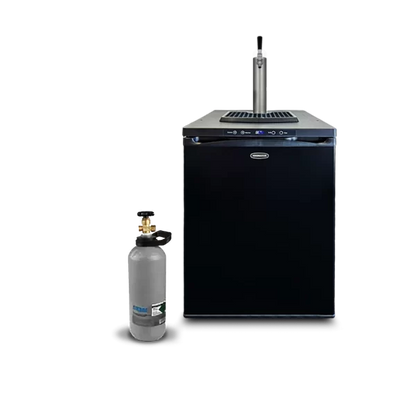

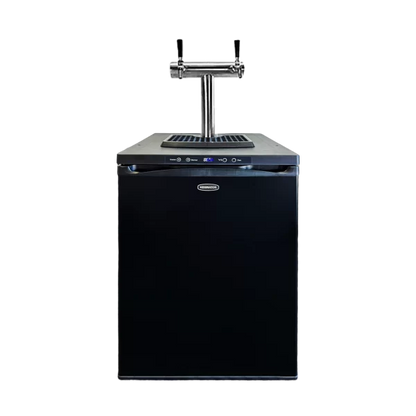

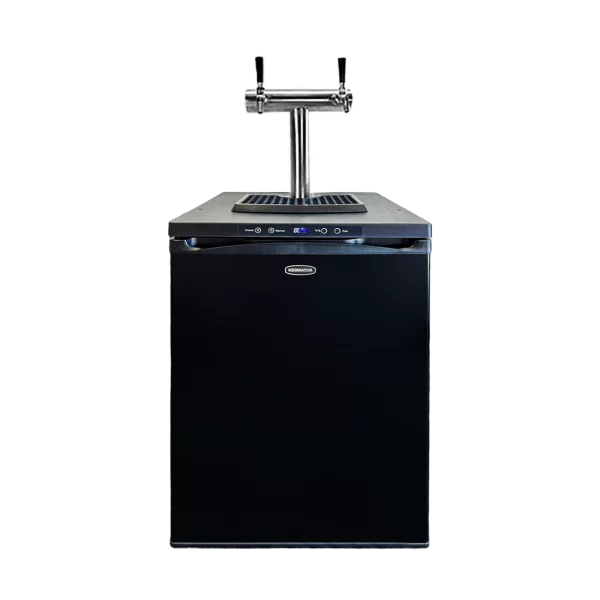

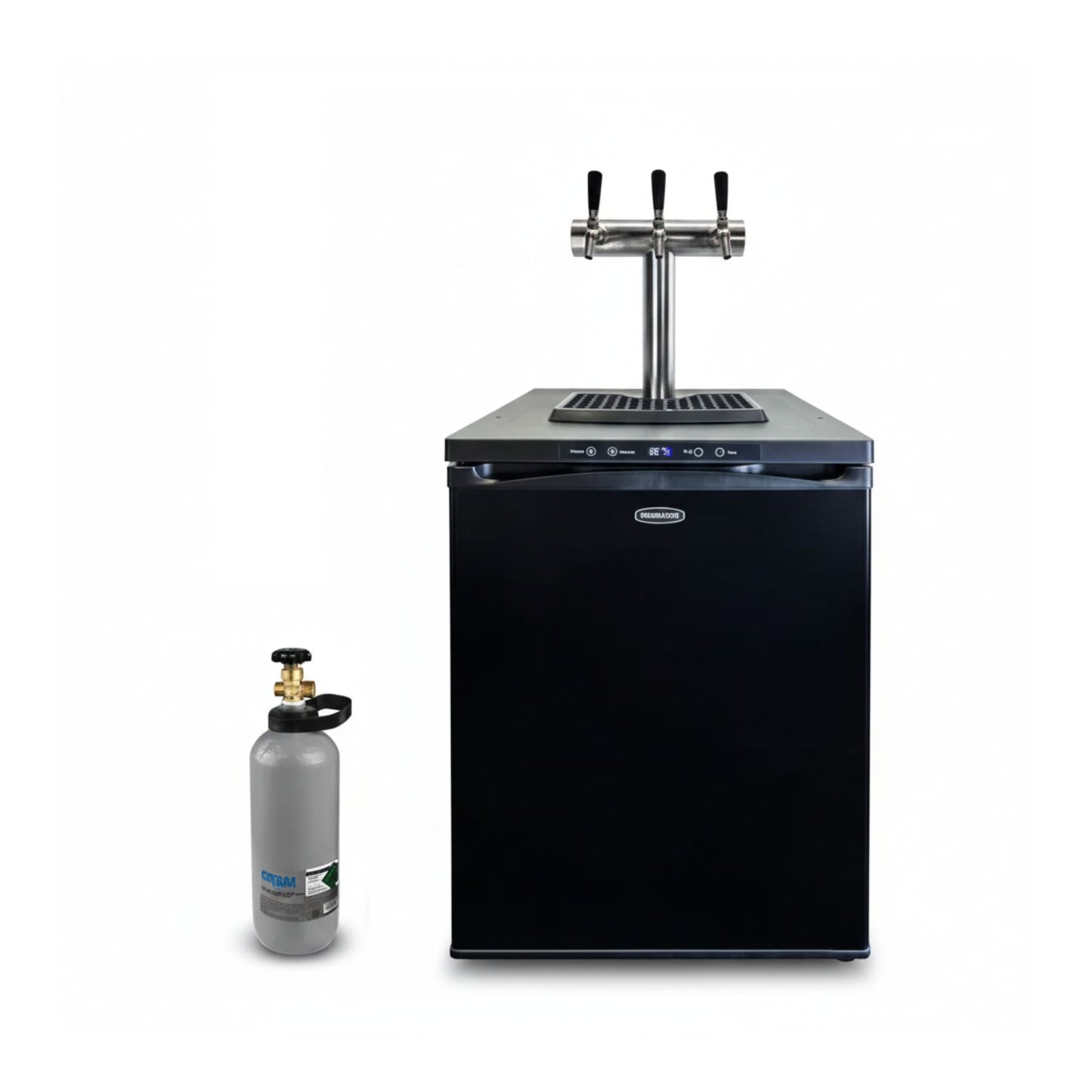

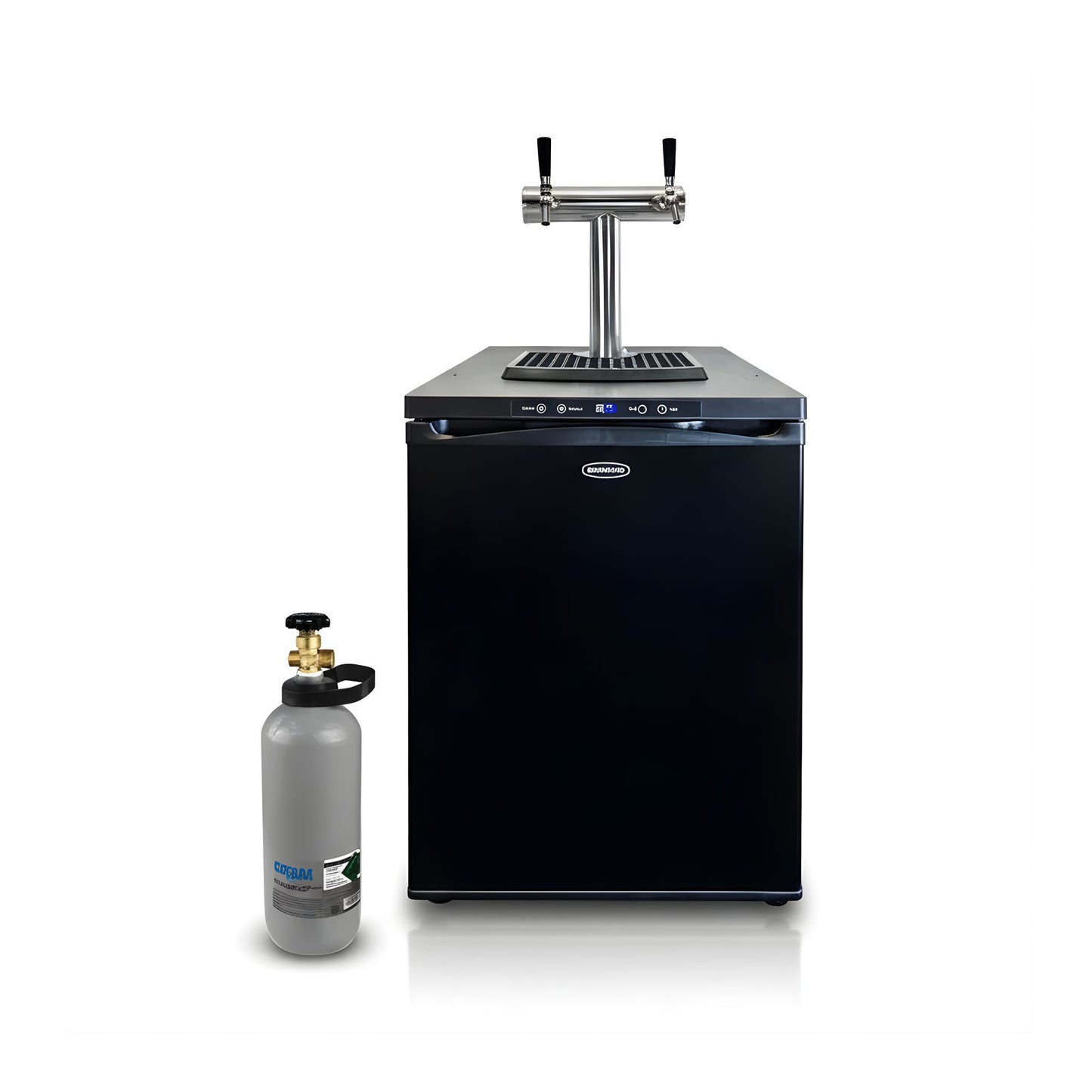

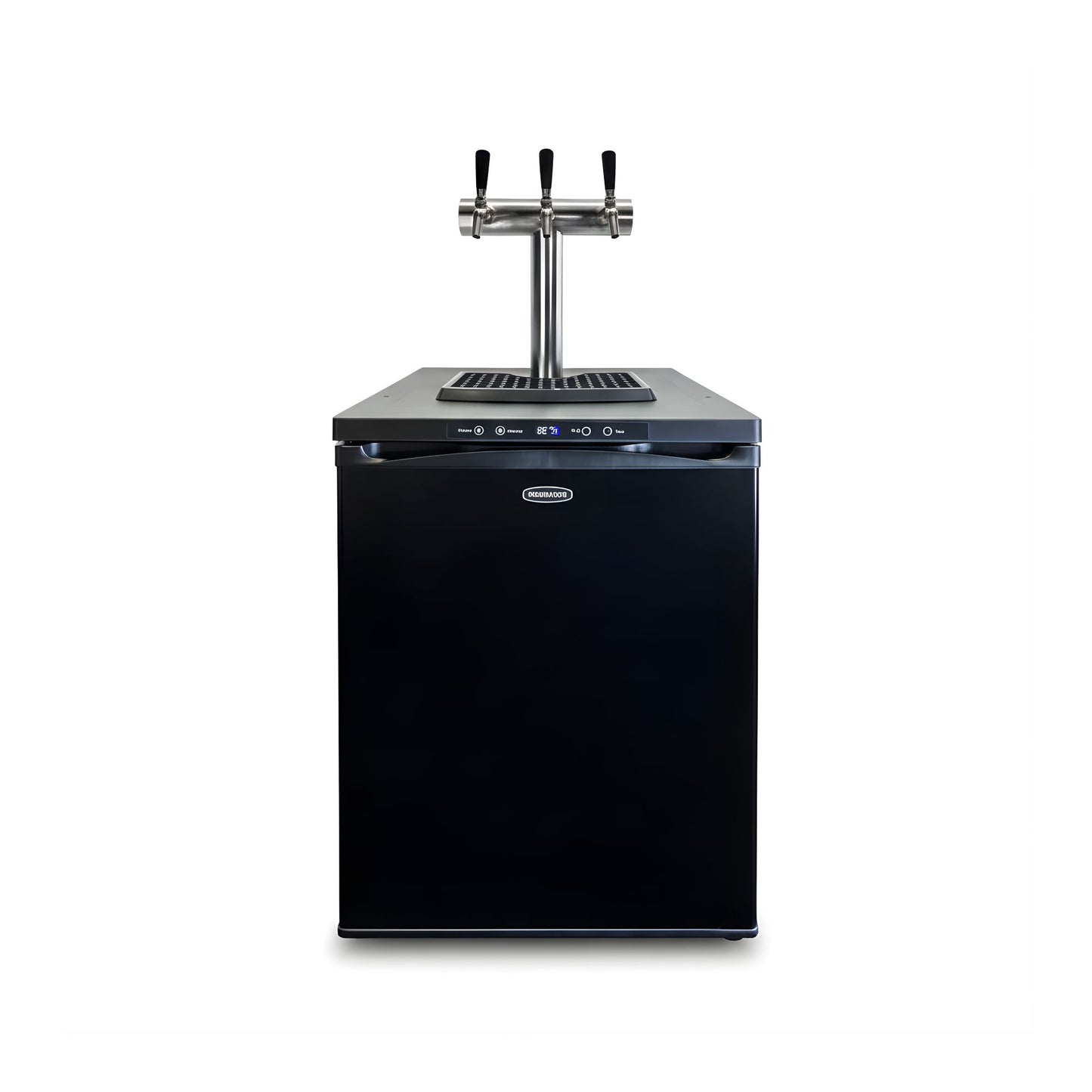

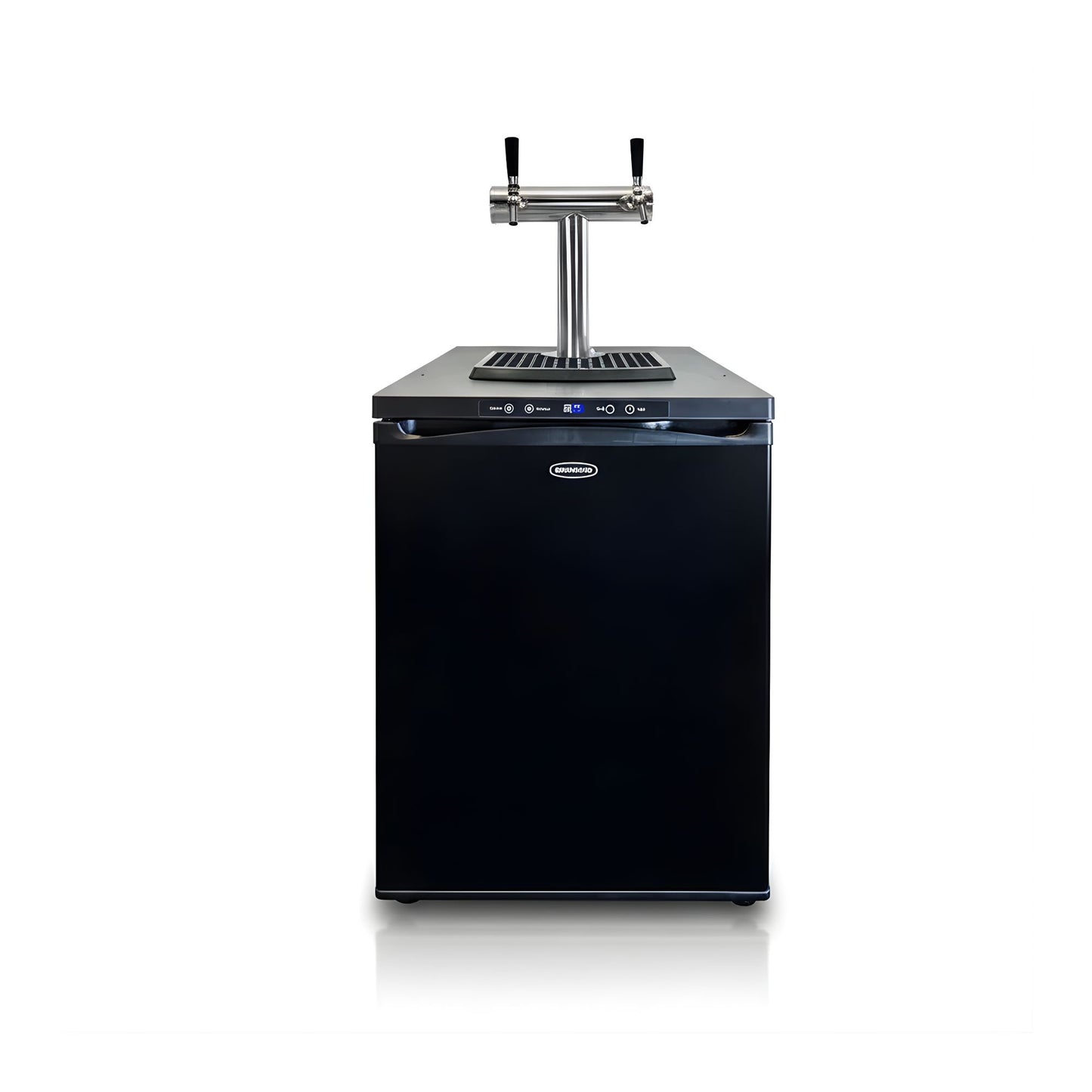

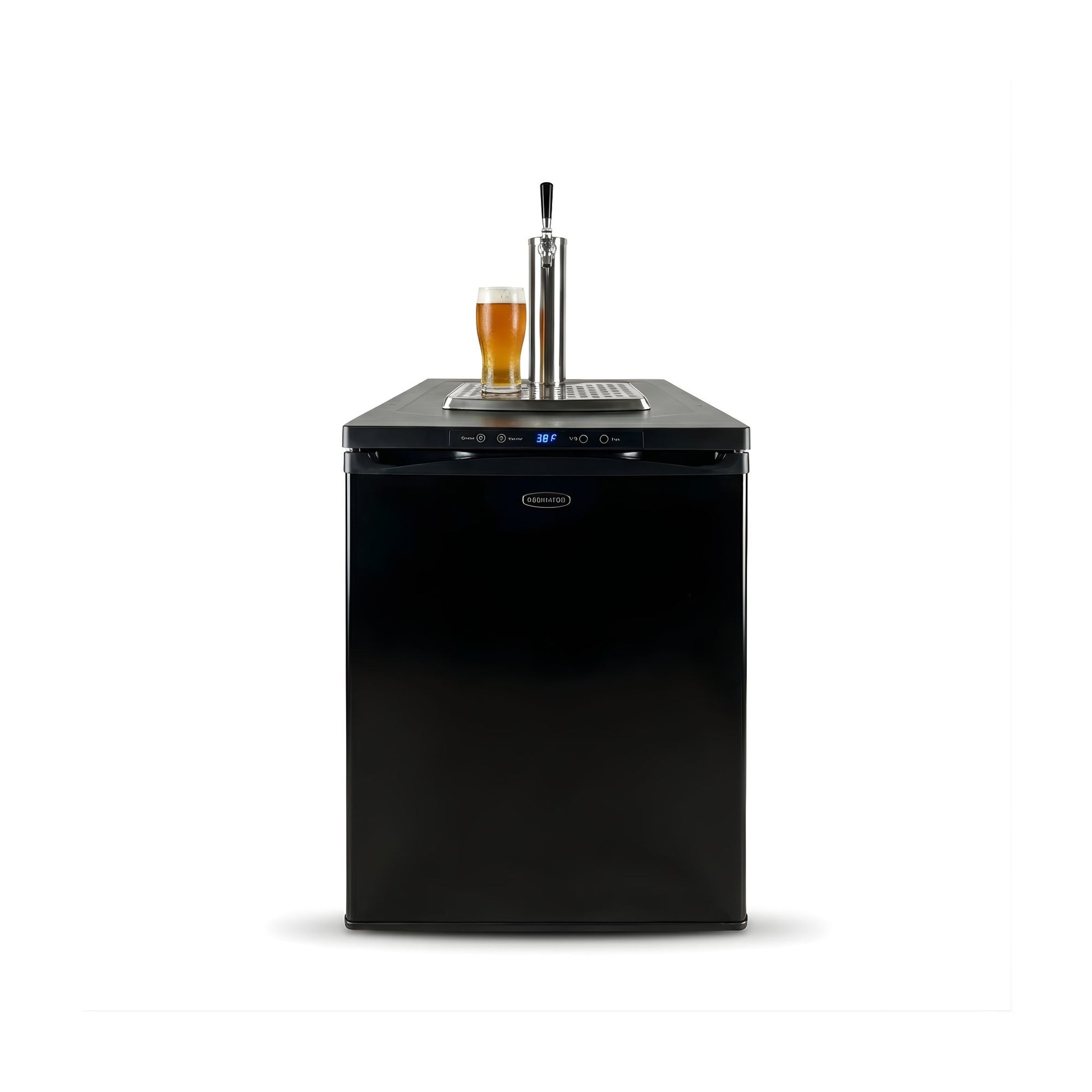

Off Tap Home Bar Noir
When installing the Off Tap Home Bar Noir inside a cabinet clearances are required to allow adequate airflow and ventilation around the unit and help ensure the kegerator operates correctly.
Minimum required clearance:
- Sides: 10 mm each side
- Top: 10 mm
- Rear: 50 mm
Ensure these clearances are maintained and that ventilation is not obstructed when enclosing the unit in cabinetry.

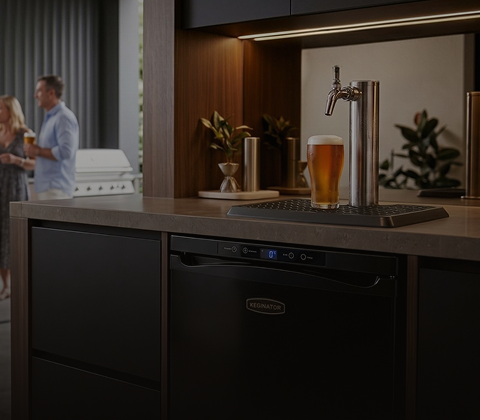

Unleash the Ultimate Pub Experience
50 litres of icy-cold draught at home, poured exactly like your local.
The Life Of Every Party
One job, done brilliantly: a commercial keg kept icy cold and poured like the pub does.
Detailed Information
Every measurement and setback in one place.
Specifications:

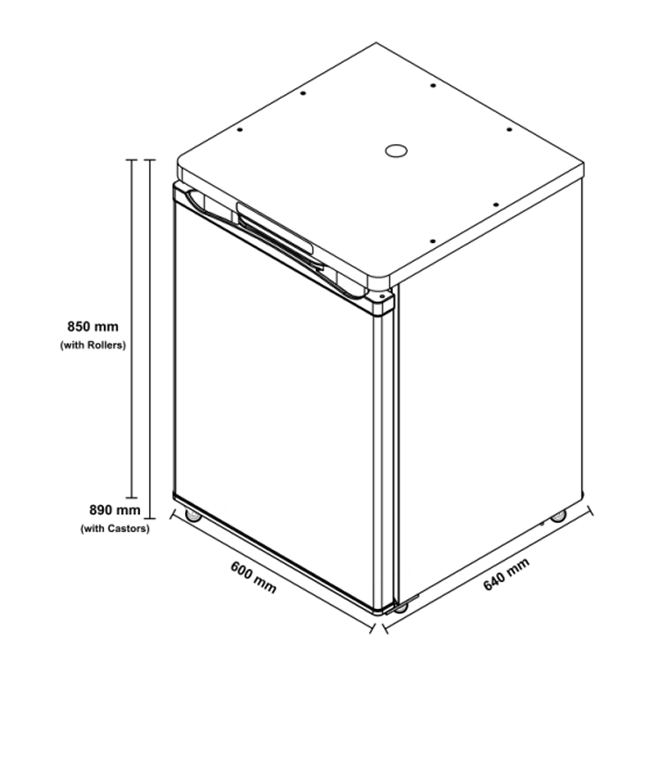

Dimensions: 610 x 660 x 850mm (WxDxH)
Packed: 660 x 690 x 880 (WxDxH)
Power: 220-240V 50Hz
Climate Class: T
Refrigerant: R600a (40g)
Insulation: Cyclopentane
Setbacks:
Front, Top & Sides: no setback
Back: 50-100mm

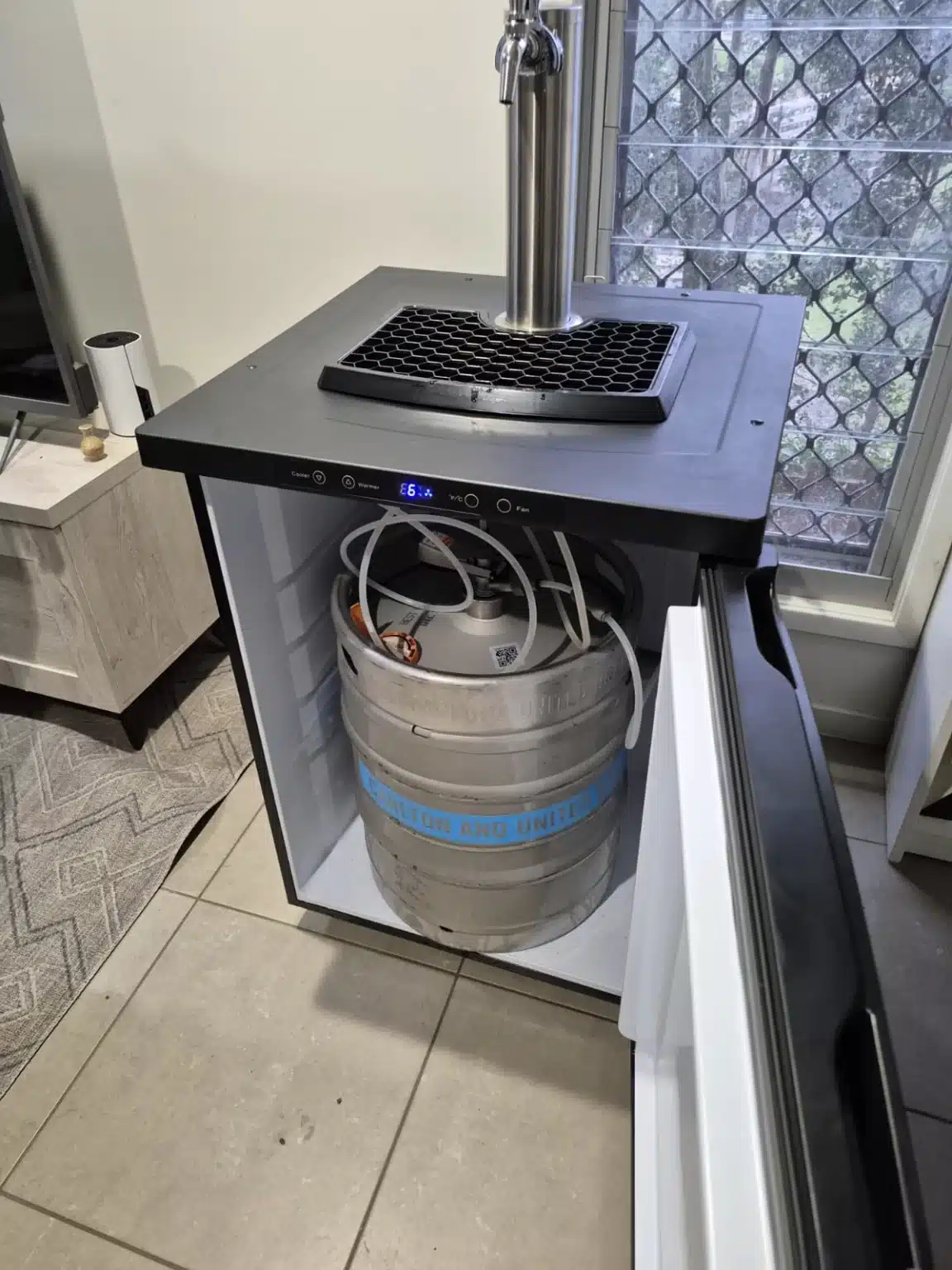

Capacity:

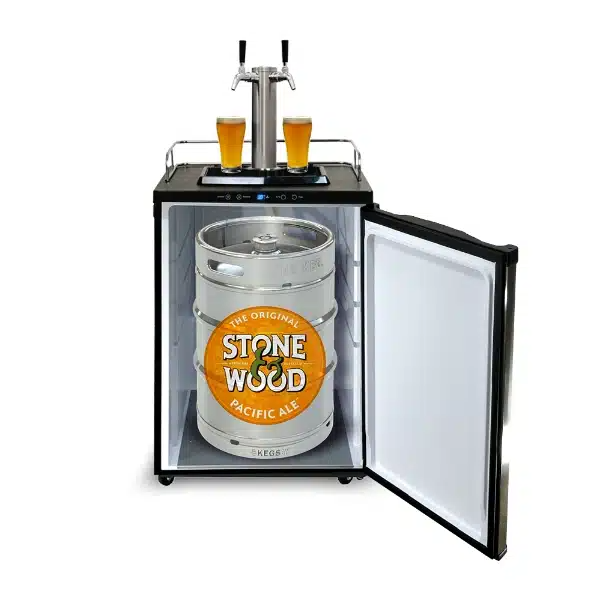

1× 50L CUB keg
1× 30L + 1× 20L
or 3× 20L kegs
Temperature:
Pours At -5 To 10°C
Climate Class T, built for Australian summers
Font fan switch chills the tower between pours
Comes With Everything You Need To Get The Pub Experience At Your Home
Standard parts come with every fridge. The rest is determined by the options you pick when configuring yours.

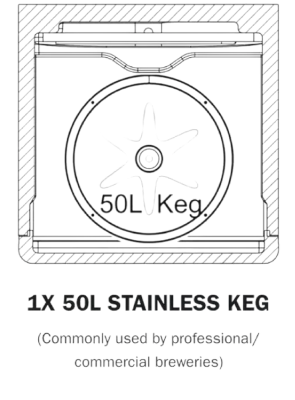

What This Kegerator Fits
Check the dimensions and keg clearances below, or speak to our team to make sure it’s the right fit for the commercial kegs you plan to run.
Easy Setup In 4 Steps
Four steps, no plumber, no installer. Allow 24–48 hours for the keg to chill to serving temperature.
Roll It Into Place
Fit the castors, position the cabinet, lock the wheels.
Power On And Chill
Plug into a standard outlet and allow 24–48 hours for the keg to reach serving temperature.
Connect Keg And Gas
Load the keg, attach the coupler, connect the lines.
Pour And Enjoy
Font fan on, tap fully open, glass tilted.
Not Sure What Your Setup Needs?
Tell us the beer you want on tap. We will confirm the coupler, gas size and keg over the phone.
Complete Your Setup
Pick the keg to pour first, genuine 49.5L commercial kegs, direct from the breweries.
Why Buyers Choose This Over The Alternatives
What Our Customers Are Saying
Real reviews from Australians pouring genuine draught beer at home, in the office and at special events.

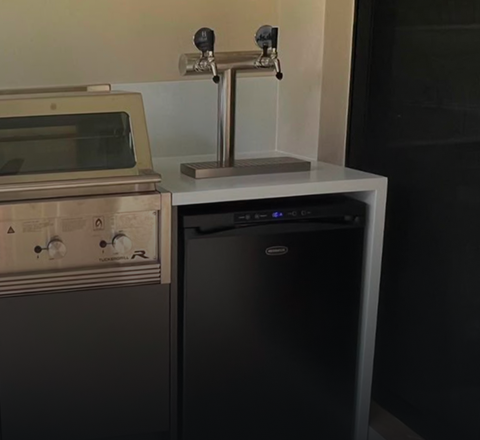

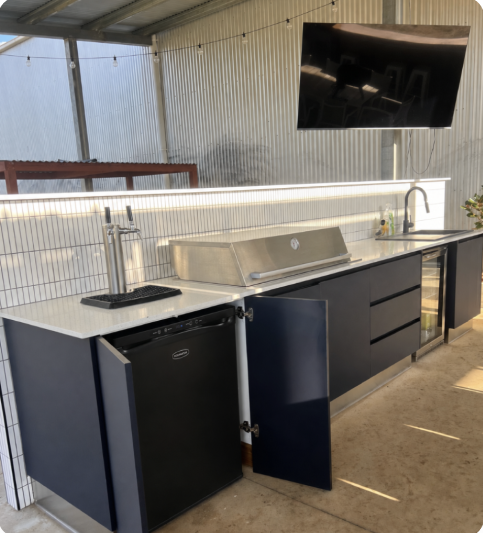

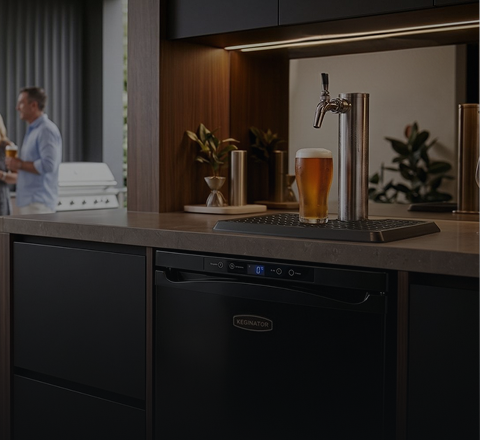

Built it into the kitchen bar and it looks like it belongs there. Holds temperature perfectly and the pour is spot on every time.

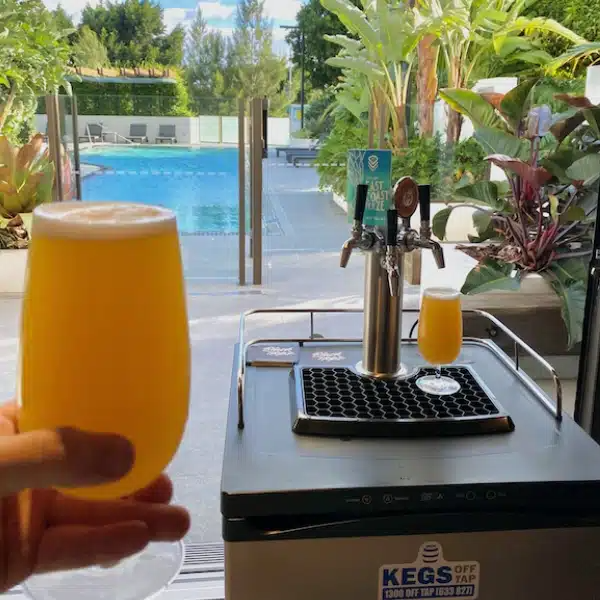

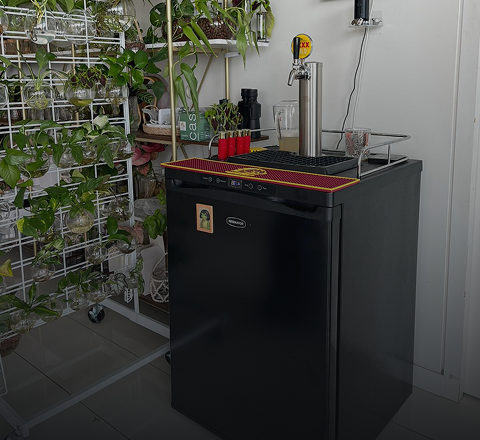

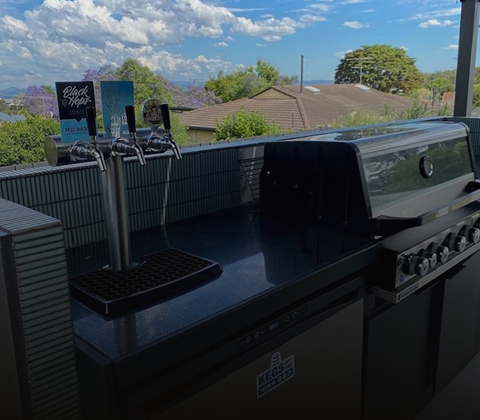

Sits out on the balcony next to the barbecue and gets used every weekend. The castors made positioning it easy.
Three kegs running at once for my 40th and everyone reckoned it beat the local. The setup advice over the phone was spot on.
You May Also Like
Kegs, home bars, bundles and couplers. Delivery available Australia-wide.
Frequently Asked

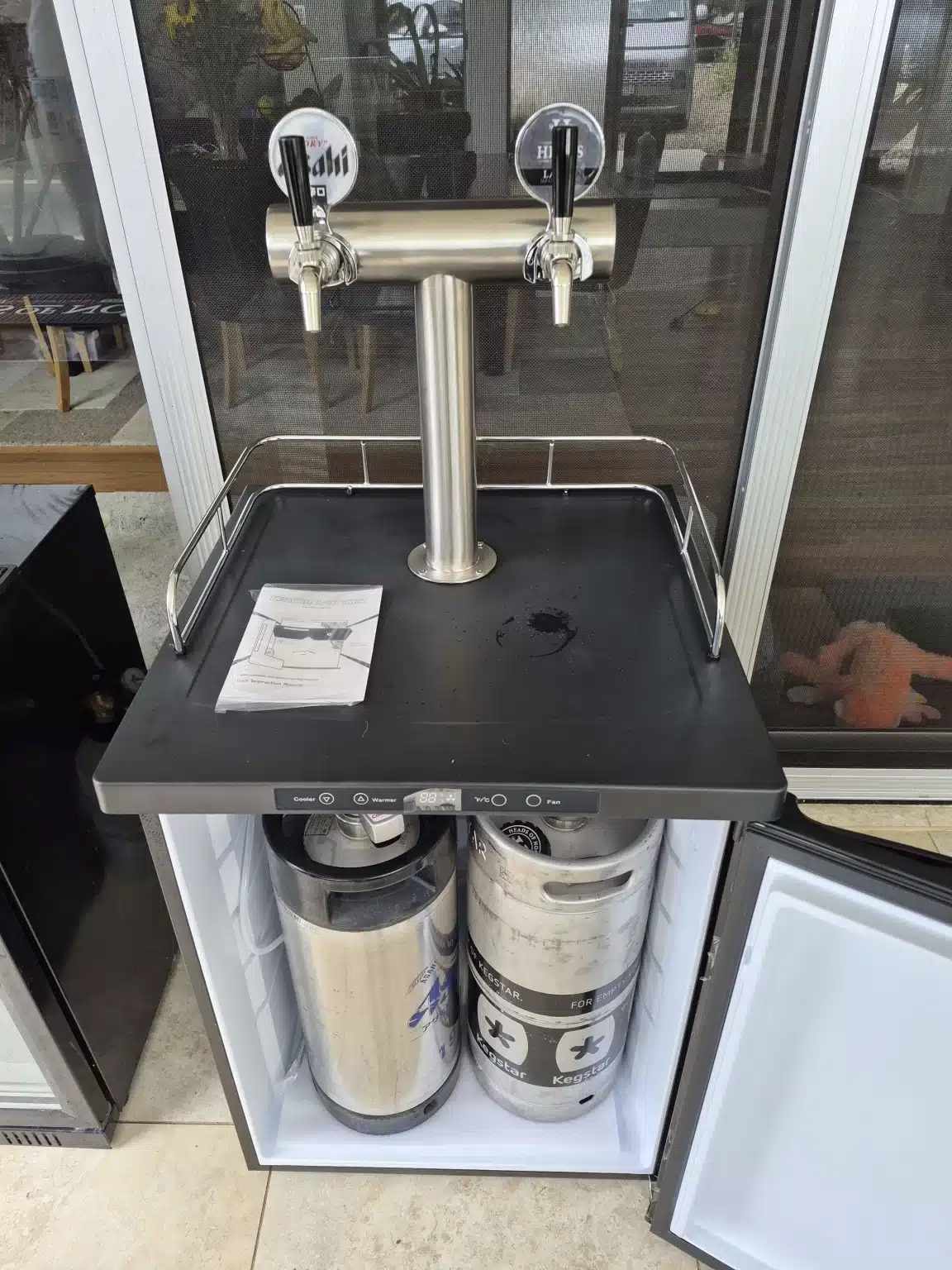

The cabinet has a 160L capacity, which takes 1× 50L keg or 3× 20L kegs.
The working temperature range is -5 to 10°C. It runs on 220–240V / 50Hz.

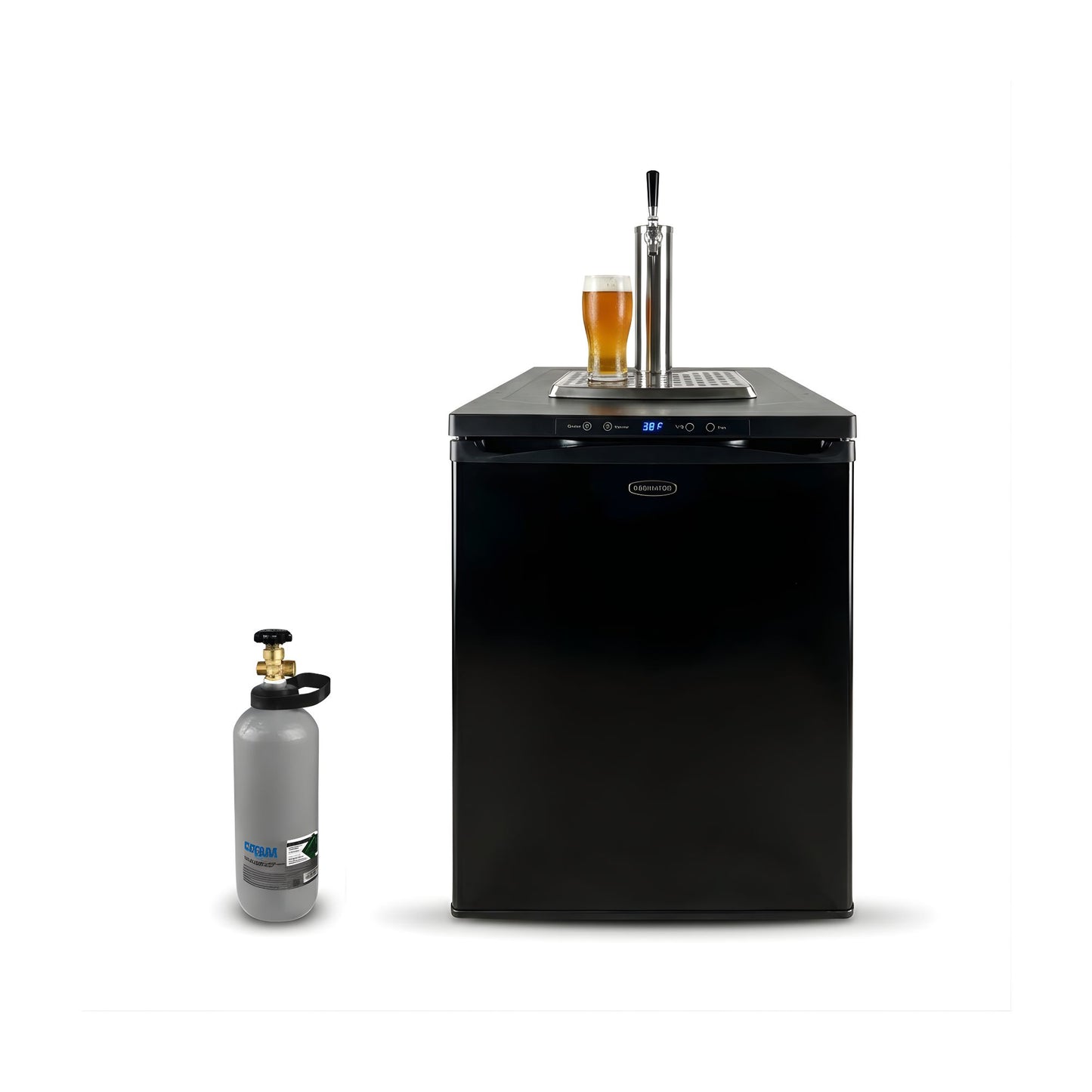

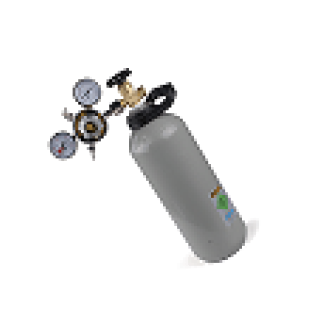

No. CO₂ gas bottles are purchased separately and are available in a 2.6kg or 6kg capacity, which will dispense up to eight or twenty 49.5L kegs respectively.
The A-Type coupler for Lion Nathan & Kegstar kegs and the D-Type coupler for CUB kegs are required to dispense commercial kegs. Couplers are purchased separately.
1× Keginator fridge with font fan switch, 1× honeycomb reinforced black plastic drip tray, 1× font plug, 1× reinforced four-point anchored castor wheels with bolts (2 lockable, 2 non-lockable), 1× brushed stainless steel font, shank and fittings, 1× stainless steel tap and black tap handle, and 1× beer and gas lines (8mm OD).
Kegs Off Tap offers delivery Australia-wide. Shipping is calculated at checkout.
Yes. Off Tap Home Bars are covered by a 12-month warranty.
