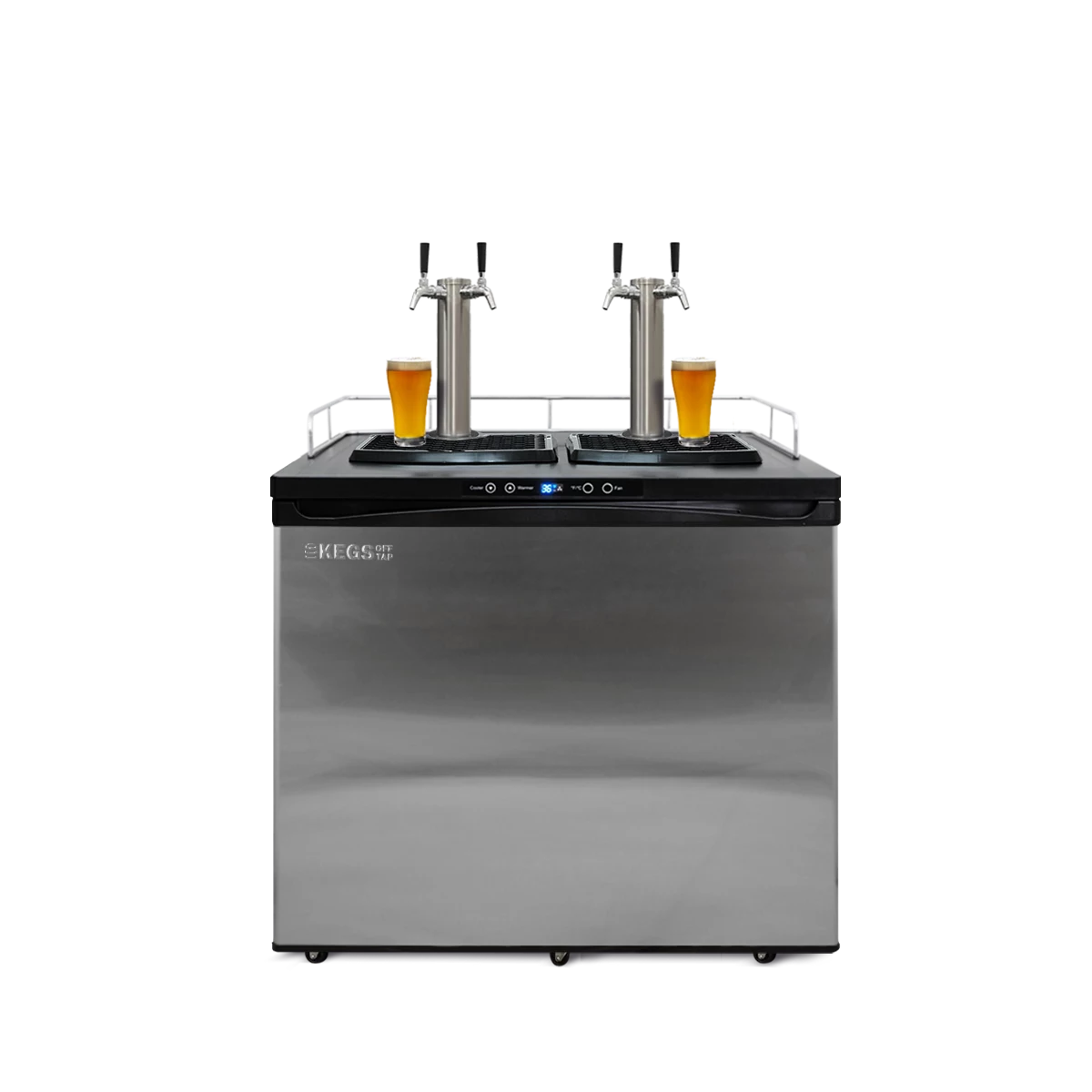

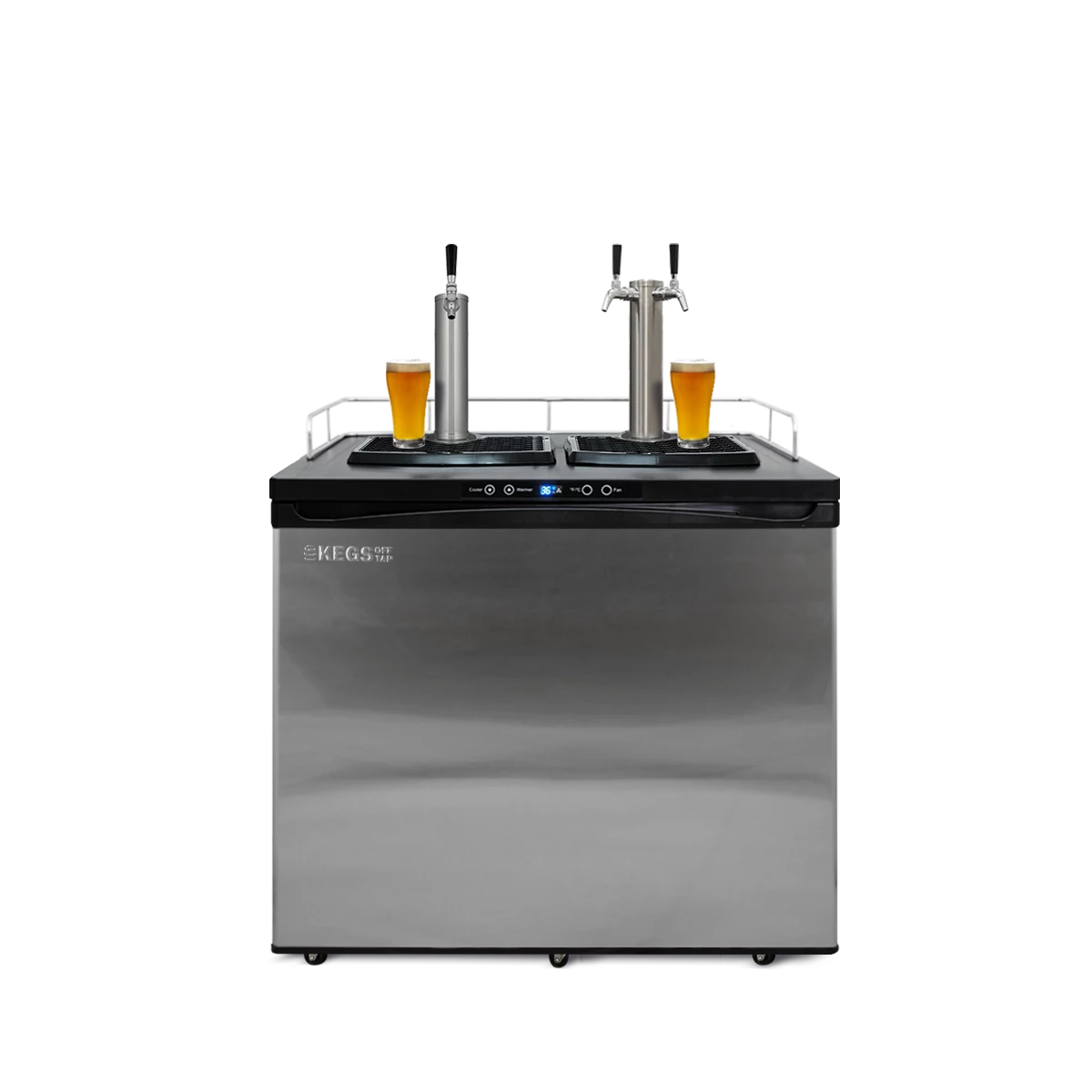

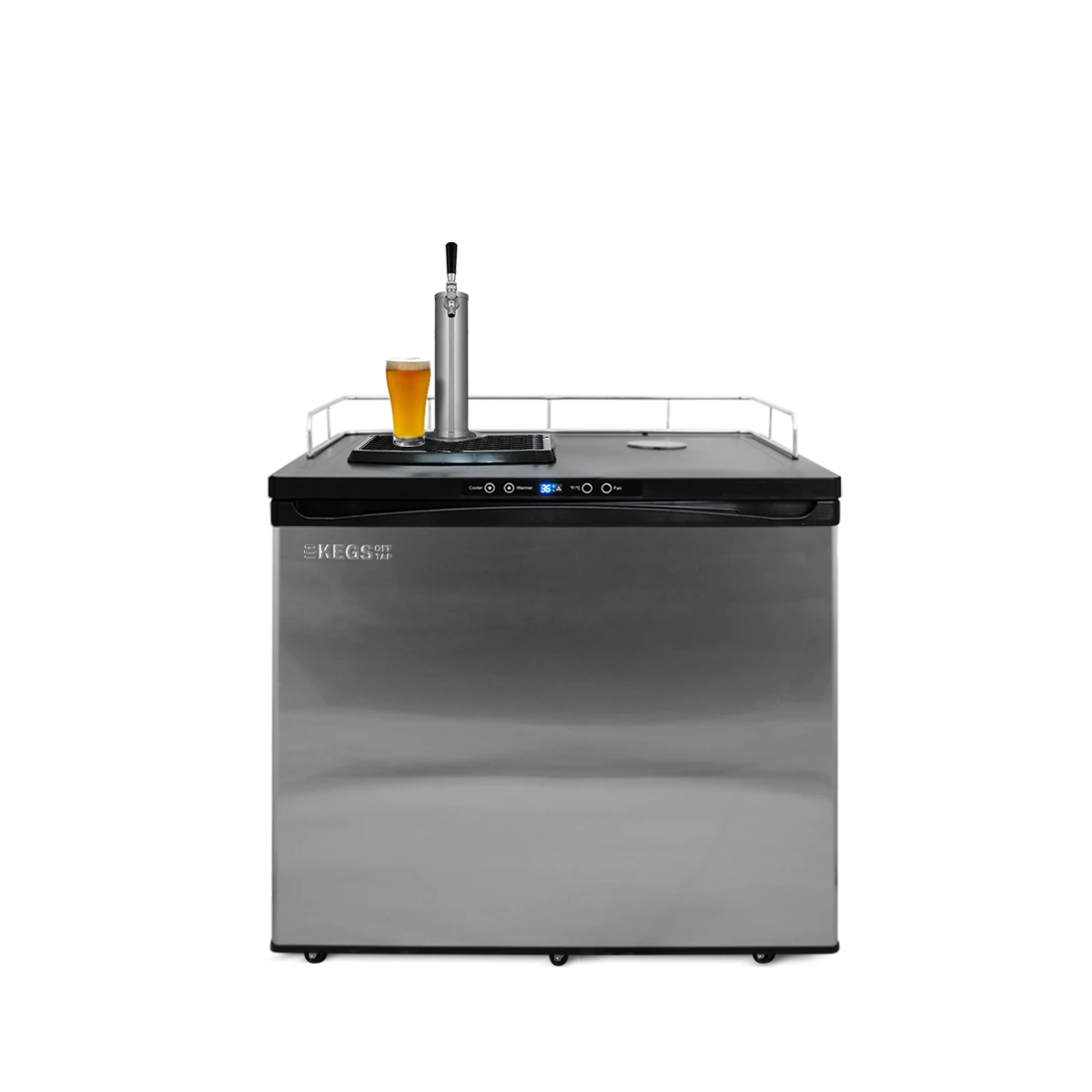

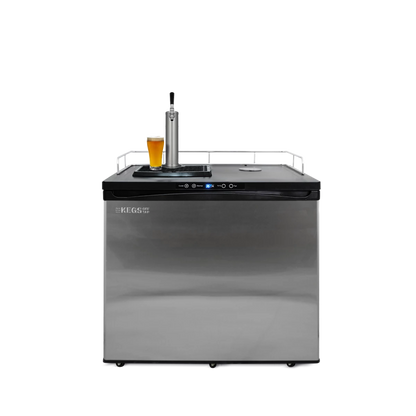

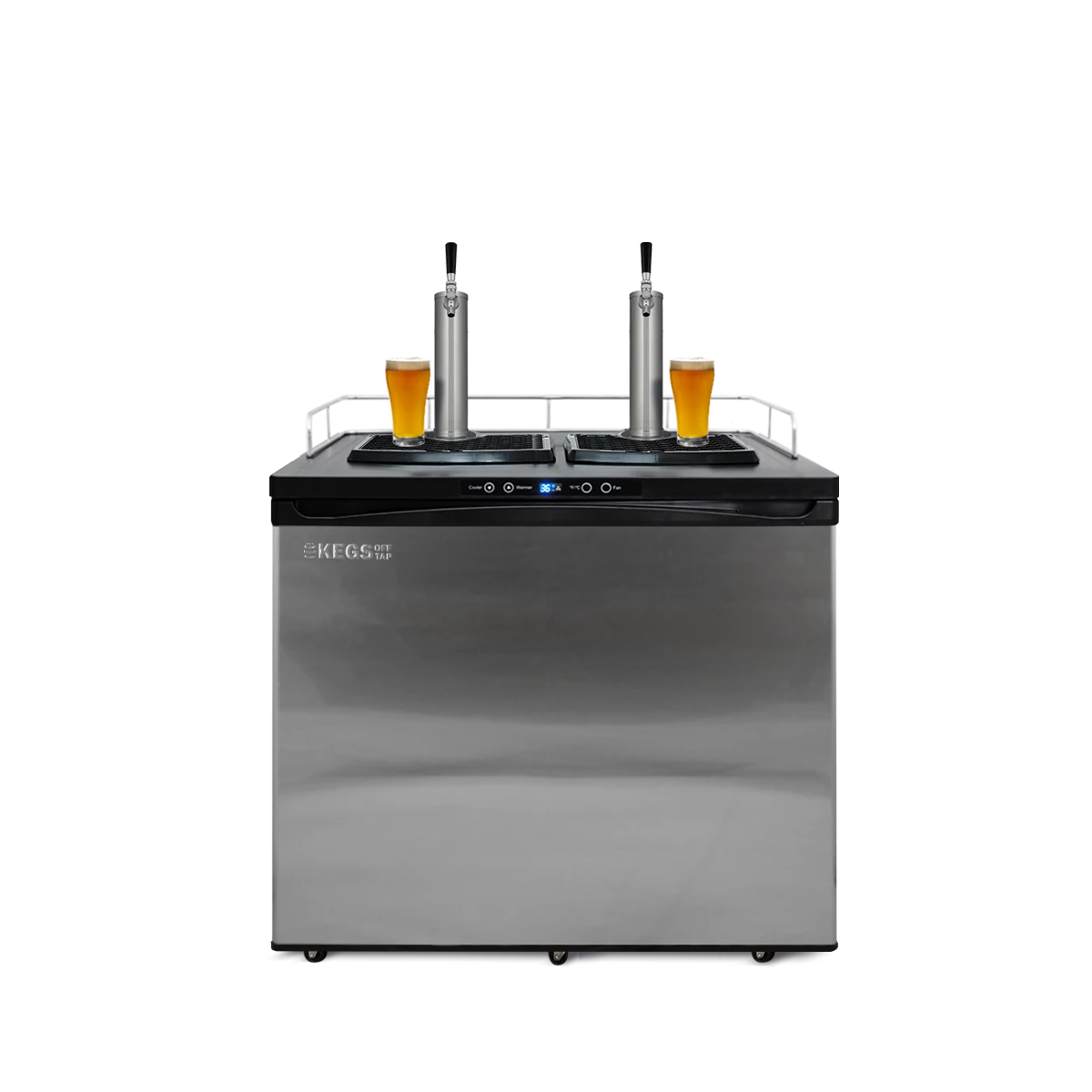

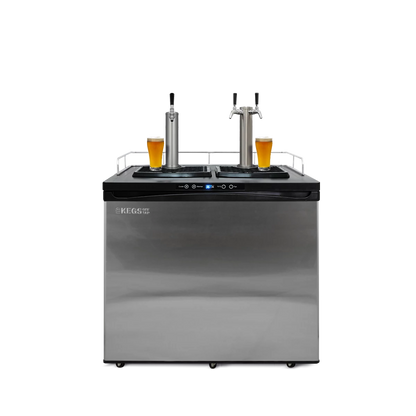

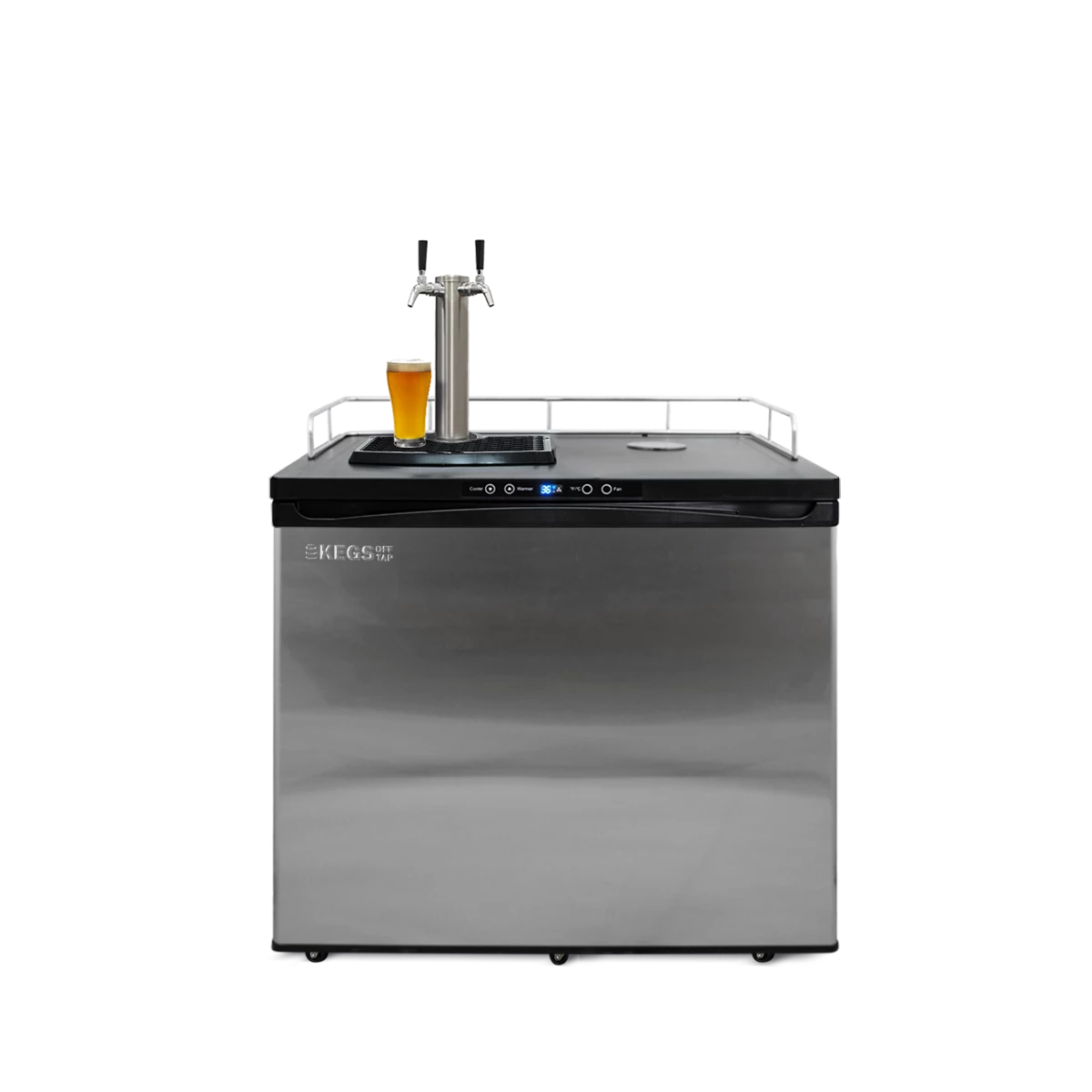

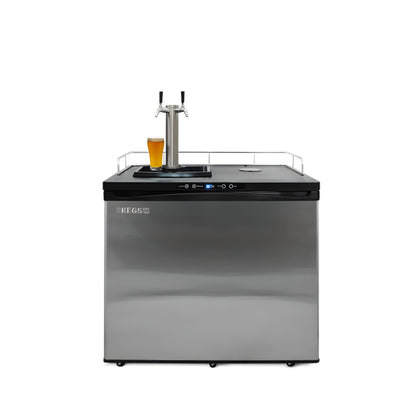

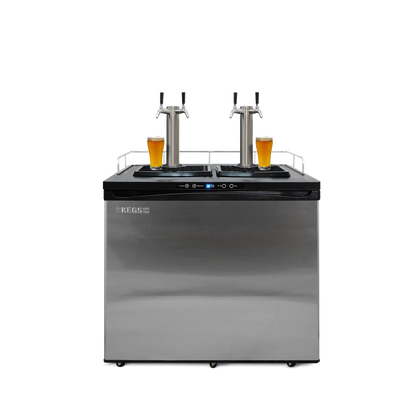

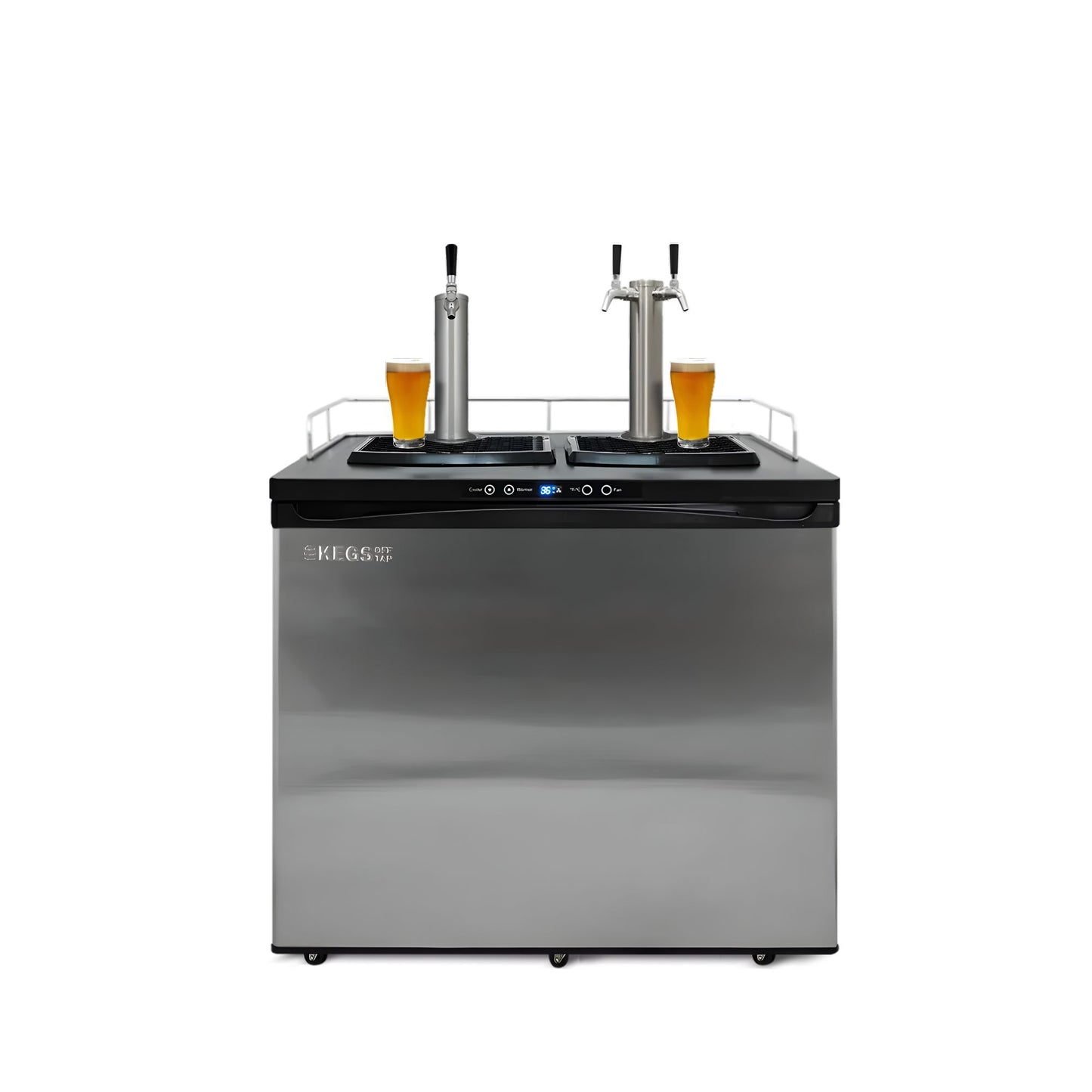

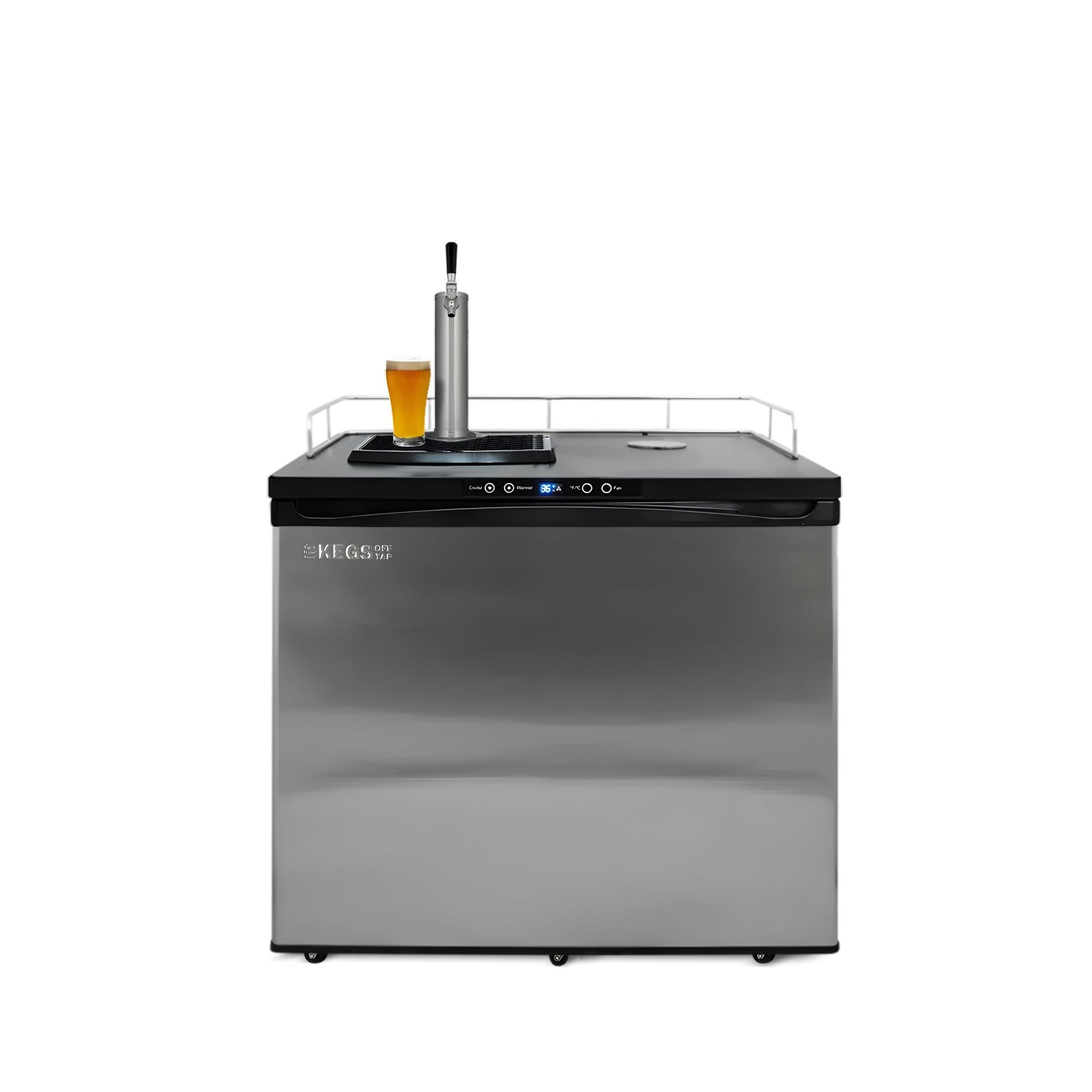

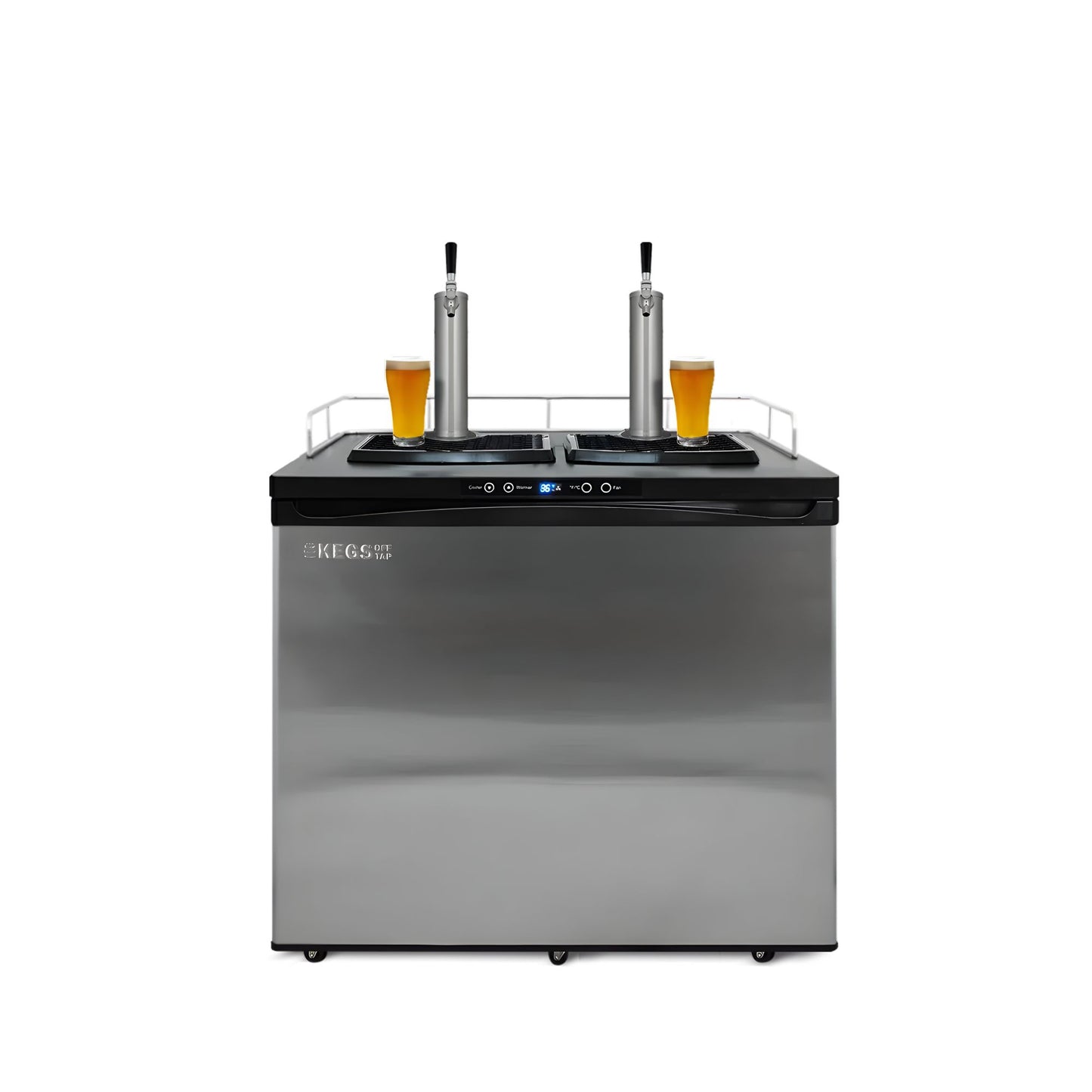

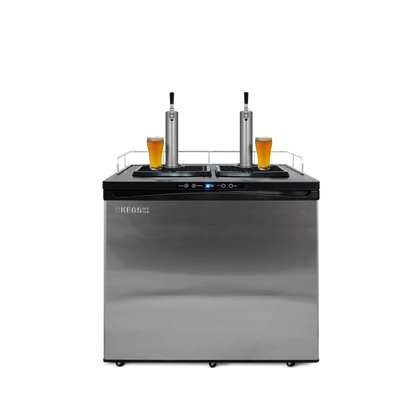

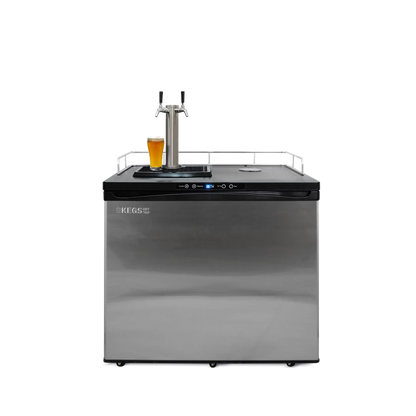

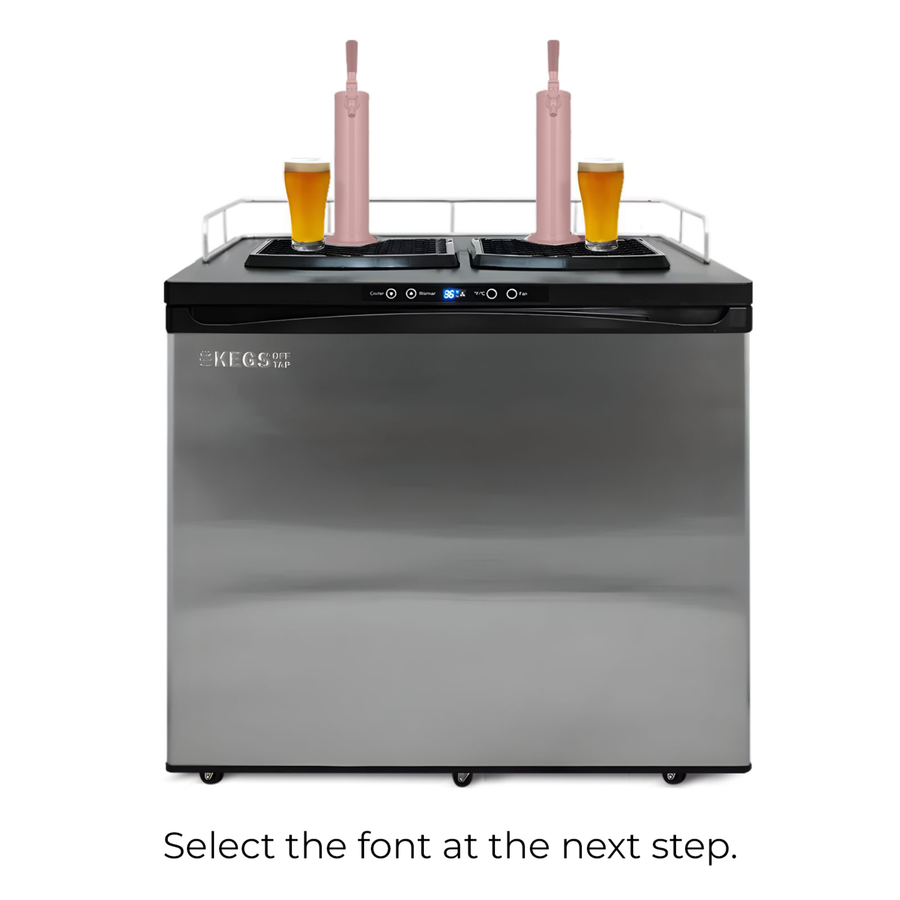

Off Tap Home Bar X Plus
When installing the Off Tap Home Bar X-Plus inside a cabinet clearance is required to provide sufficient space around the unit for proper ventilation and airflow.
Minimum cabinet clearance:
- Sides: 100 mm each side
The X-Plus measures 420 mm wide × 900 mm high × 709 mm deep. Ensure the specified side clearance is maintained and ventilation is not obstructed when installing the unit within cabinetry.
Unleash the Ultimate Draught Experience
100 litres of icy-cold draught at home, poured exactly like your local.
Your Ticket To An Unparalleled Pub-Quality Experience
310 litres of keg capacity: two genuine 50L commercial kegs side by side, poured like the pub does.
Detailed Information
Every measurement and setback in one place.
Specifications:
Dimensions: 900 x 708 x 840mm (WxDxH)
Incl. castor wheels: 890mm (H)
Power: 100W
Current: 0.9A
Voltage: 220-240V 50Hz
Working Temp: -5 to 10°C
49.5L Kegs:
CUB (D-Type): 400mm (W) x 530mm (H)
Lion (A-Type): 360mm (W) x 610mm (H)

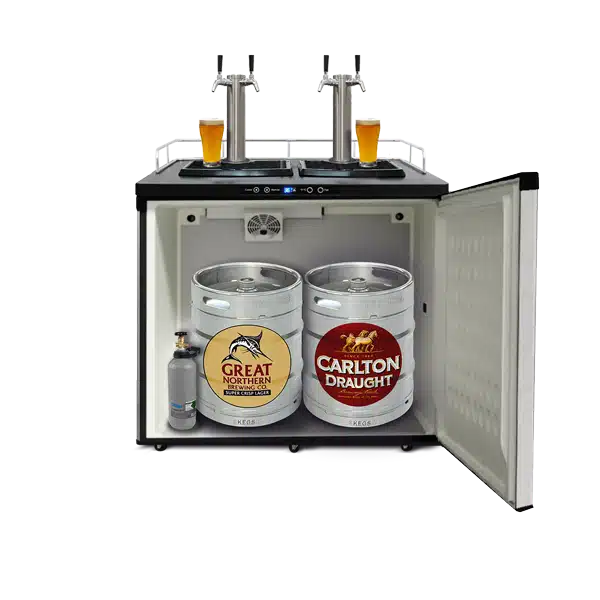

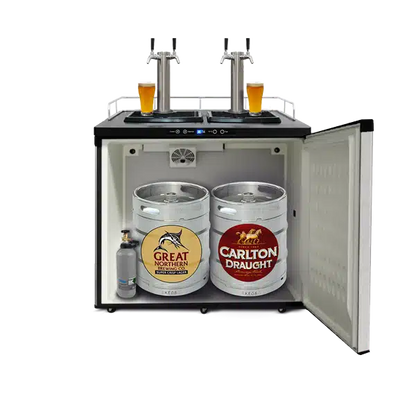

Capacity:
310L — 2× 50L kegs
6× 20L kegs
or 8× 19L kegs
Temperature:
Pours At -5 To 10°C
100W draw on a standard 220–240V outlet
Font fan switch chills the tower between pours
Comes With Everything You Need To Get The Pub Experience At Your Home
Standard parts with every fridge. The rest is set by the options you pick.
What This Kegerator Fits
Check the dimensions and keg clearances below, or speak to our team to make sure it’s the right fit for the commercial kegs you plan to run.
Easy Setup In 4 Steps
Four steps, no plumber, no installer. Allow 24–48 hours for the keg to chill to serving temperature.
Roll It Into Place
Fit the castors, position the cabinet, lock the wheels.
Power On And Chill
Plug into a standard outlet and allow 24–48 hours for the keg to reach serving temperature.
Connect Keg And Gas
Load the keg, attach the coupler, connect the lines.
Pour And Enjoy

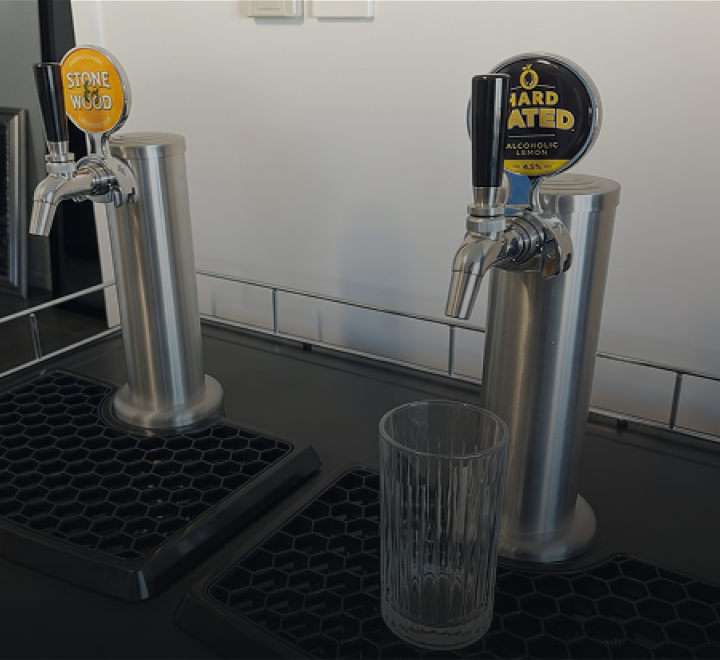

Font fan on, tap fully open, glass tilted.
Not Sure What Your Setup Needs?
Tell us the beer you want on tap. We will confirm the coupler, gas size and keg over the phone.
Complete Your Setup
Pick the keg to pour first, genuine 49.5L commercial kegs, direct from the breweries.
Compare With Others
What Our Customers Are Saying
Real reviews from Australians pouring genuine draught beer at home, in the office and at special events.

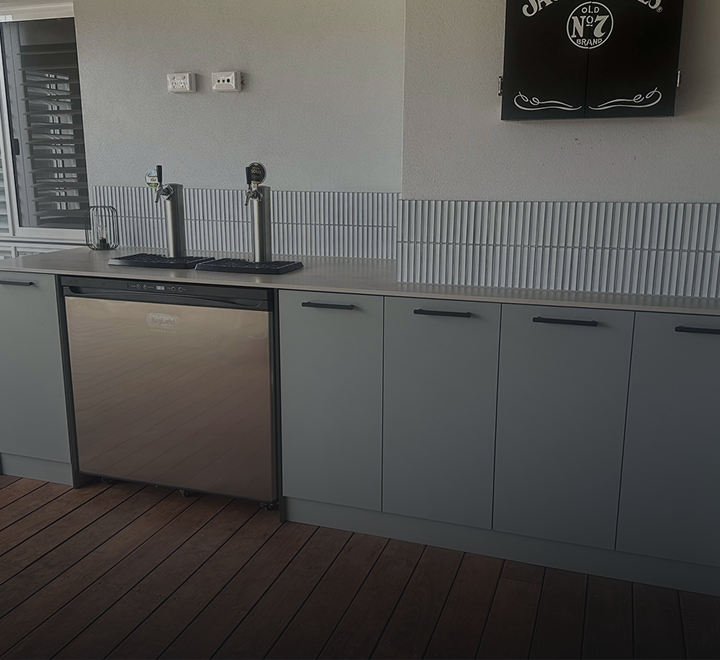

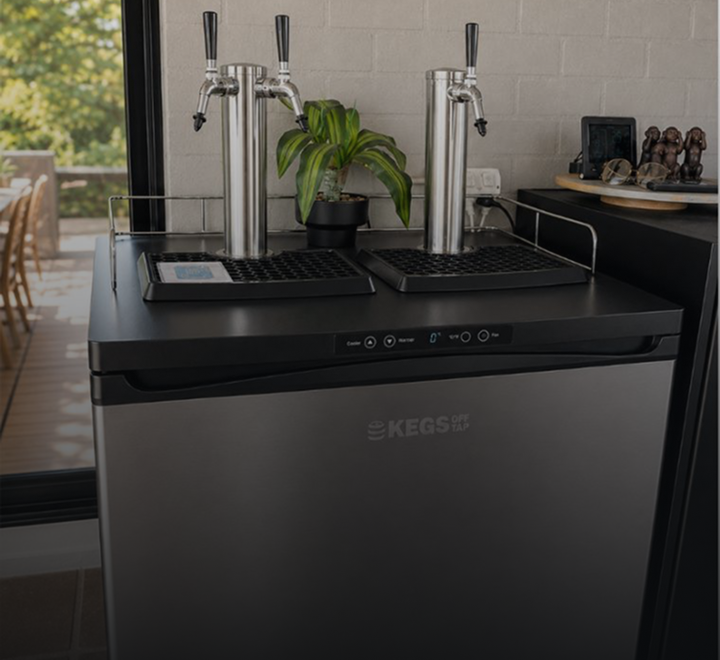

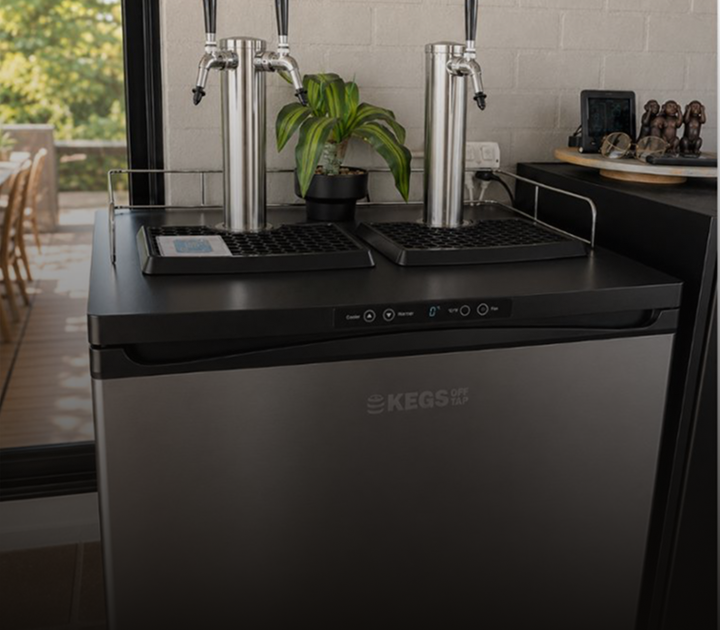

Built it into the kitchen bar and it looks like it belongs there. Holds temperature perfectly and the pour is spot on every time.

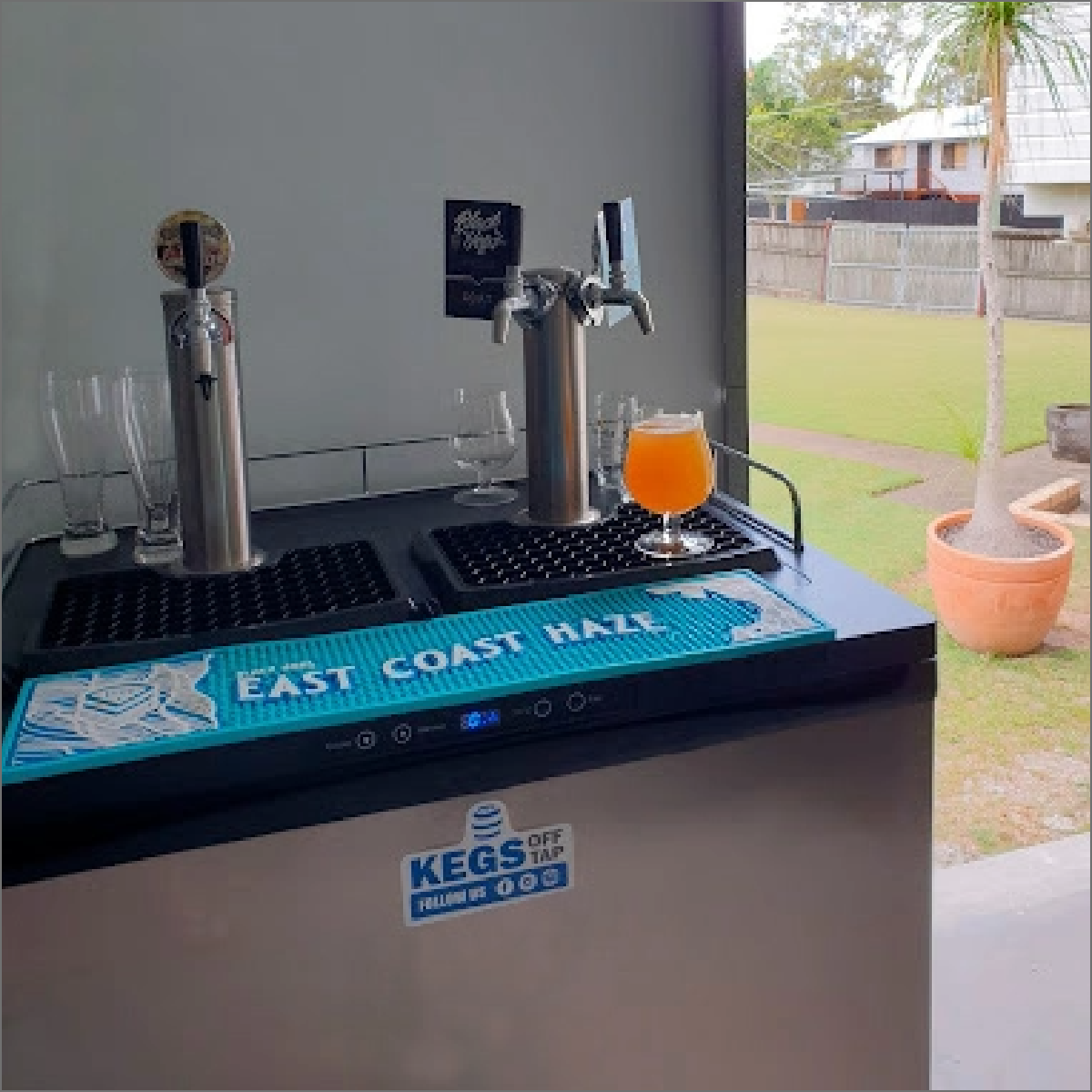

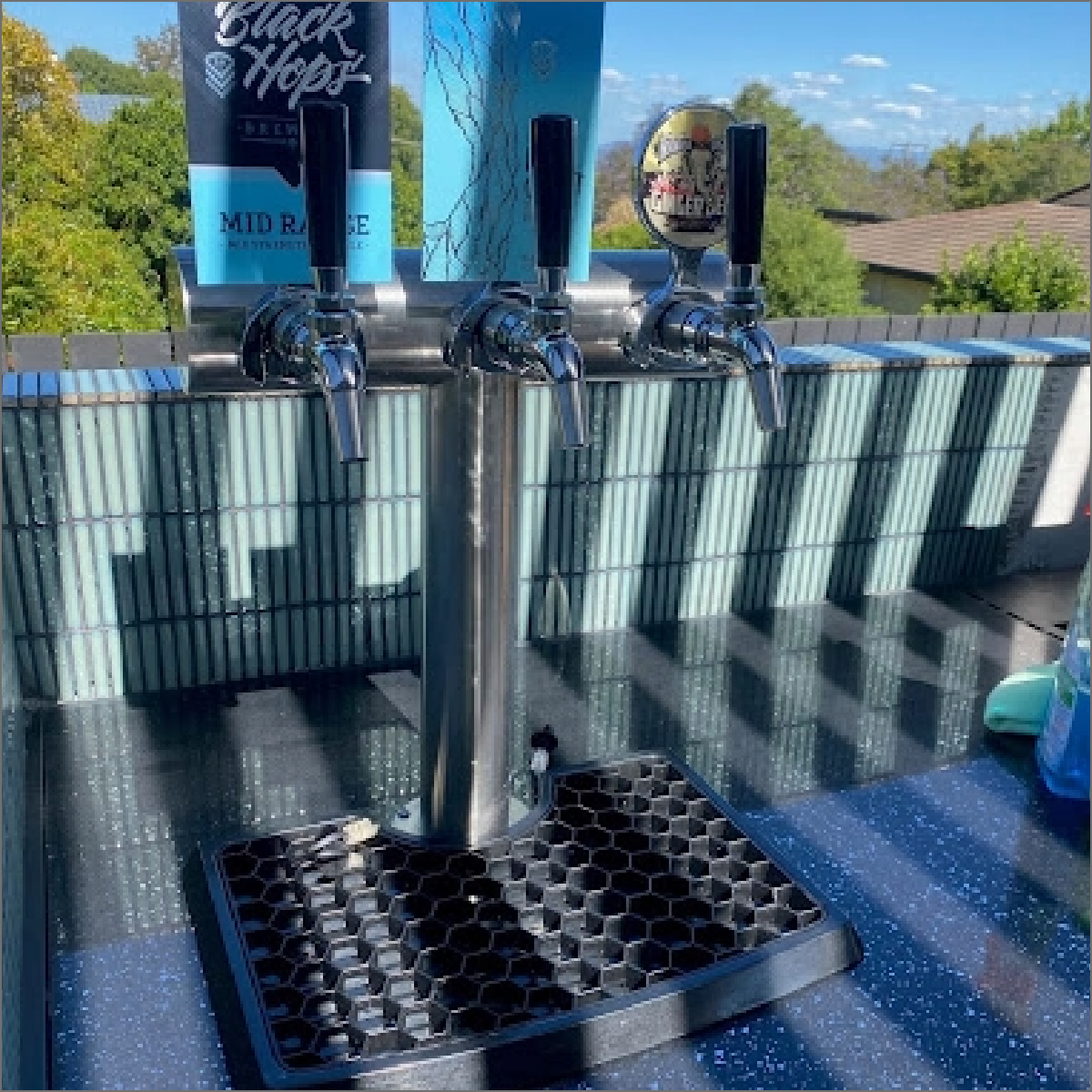

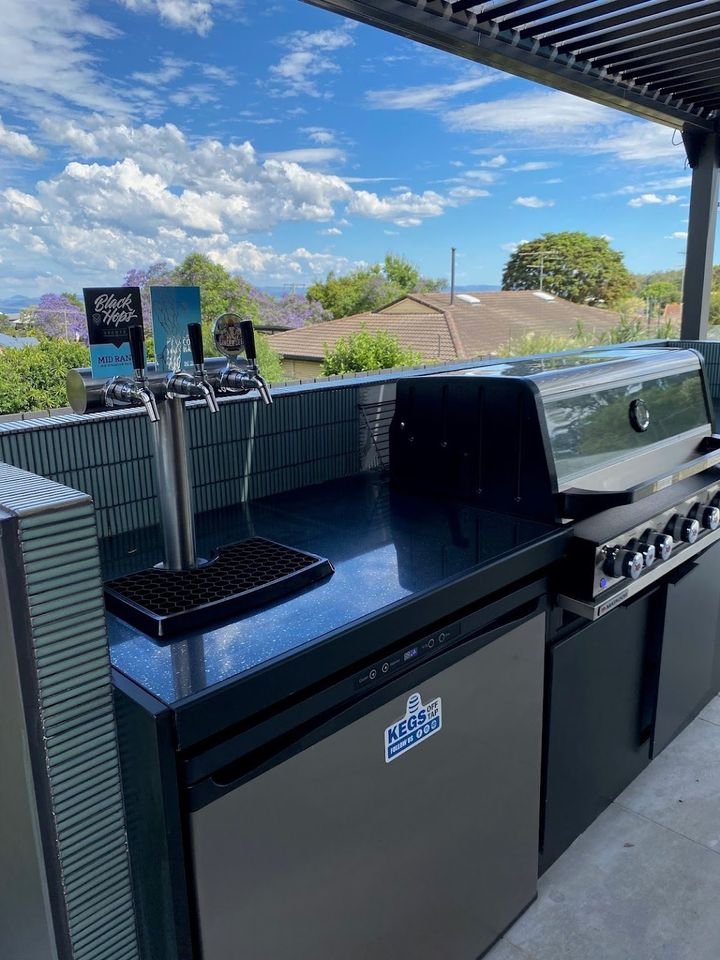

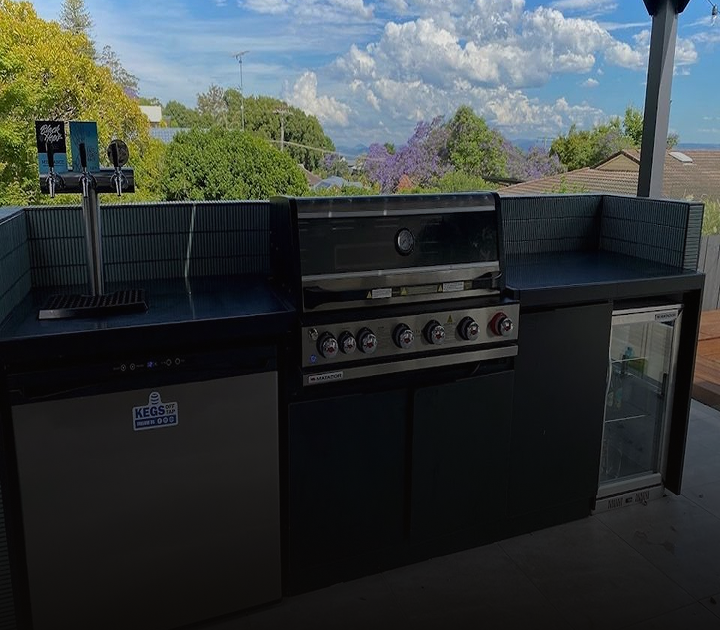

Sits out on the balcony next to the barbecue and gets used every weekend. The castors made positioning it easy.
Three kegs running at once for my 40th and everyone reckoned it beat the local. The setup advice over the phone was spot on.
You May Also Like
Kegs, home bars, bundles and couplers. Delivery available Australia-wide.
Frequently Asked

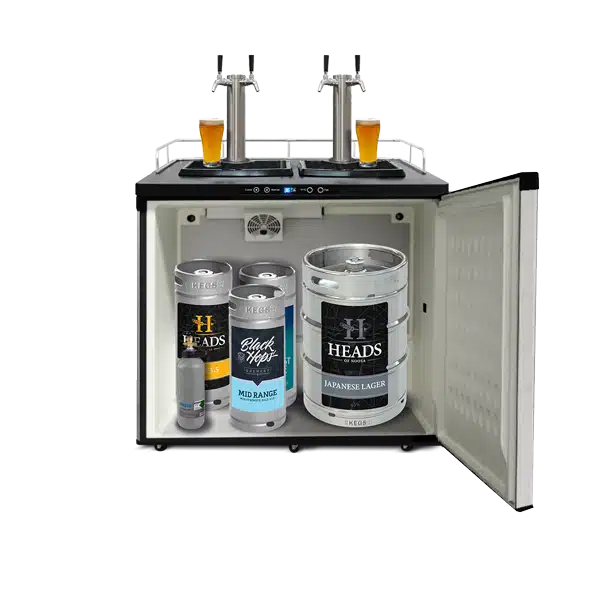

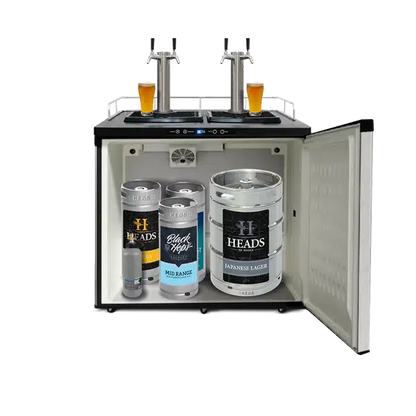

The cabinet has a 310L capacity, which takes 2× 50L kegs, 6× 20L kegs or 8× 19L kegs.
The working temperature range is -5 to 10°C. It runs on 220–240V / 50Hz.
No. CO₂ gas bottles are purchased separately and are available in a 2.6kg or 6kg capacity, which will dispense up to eight or twenty 49.5L kegs respectively.
The A-Type coupler for Lion Nathan & Kegstar kegs and the D-Type coupler for CUB kegs are required to dispense commercial kegs. Couplers are purchased separately.
1× Series X Plus kegerator fridge with font fan switch, 2× honeycomb reinforced drip trays, 1× stainless steel guard rail, 2× font plugs, 6× reinforced four-point anchored castor wheels with bolts, 1× CO₂ cylinder bracket holder (2.6kg), duotight short shank, reducer and fitting, 1× black plastic tap handle, Evabarrier beer and gas lines, and 8× metric M5 stainless screws to secure the font.
Kegs Off Tap offers delivery Australia-wide. Shipping is calculated at checkout.
Yes. The Off Tap Home Bar X Plus is covered by a 2 Year Warranty.
